ZIGMA
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
The Zigma-02 A is a full automatic heavy duty double head miter saw designed for straight and miter cut of vinyl and aluminum materials. It is equipped with 16-1/2” ... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

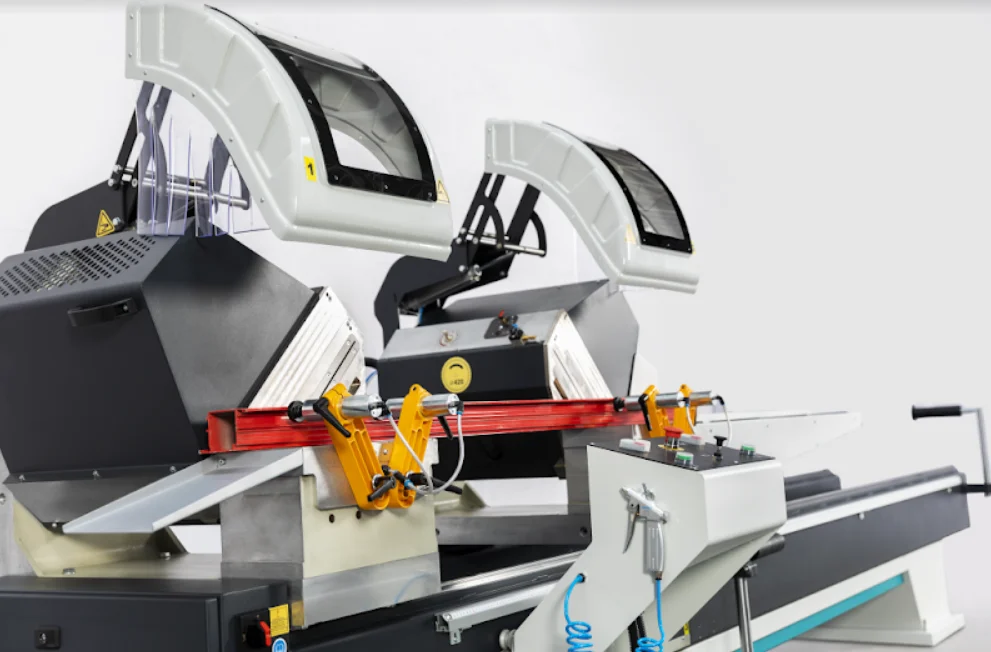

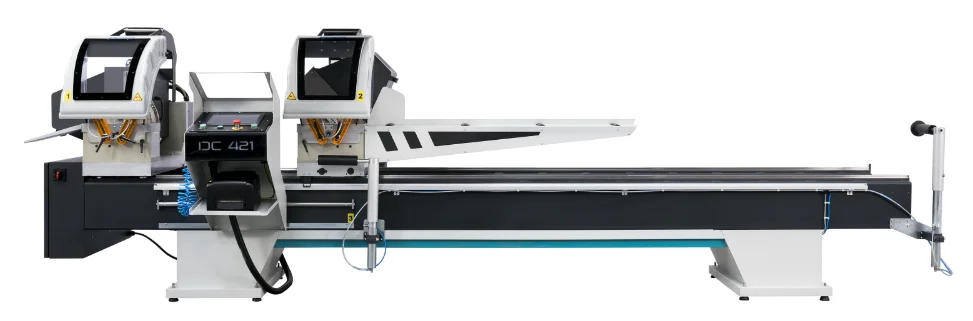

The Zigma-02 A is a full automatic heavy duty double head miter saw designed for straight and miter cut of vinyl and aluminum materials. It is equipped with 16-1/2” (420 mm) carbide tipped saw blades.
TECHNICAL FEATURES
- Two-hand safety operation
- Tilting automatically to 90° and 45° inwards for both angles, manual adjustment of intermediate angles from 90° to 45° inwards
- Automatic slicing feature at 90°
- Hydro-pneumatic saw blade feed
- Cutting accuracy +/- 0.2 mm
- Solid steel construction of the body
- Automatically closing safety guards
- Automatic changeover mode from cut to cut without any operator input
- Technical support capability via remote connection using PC and cable
STANDARD ACCESSORIES
- Ø 420 mm (16-1/2”) saw blade
- Roller conveyor & 2 x profile supports
- Pneumatic spray mist lubrication system
- 4 x horizontal clamps
- Air gun
OPTIONAL ACCESSORIES
- Profile Length Stop (DKN 70 with digital unit or DKN 71 with ruler)
- Barcode printer
- Machine with 5 m (16.5’) and 6 m 20’ bed length
- VCE 1570 heavy duty industrial type chip collector
- 2 x vertical clamps
Techinal Table
| 2.2 kW x 2.50-60 Hz 3-Ph 220V/440V 50/60Hz | D:420mm (16-1/2”) d:30-32 mm | 3000 rpm | 6-8 Bar (90-120 psi) 57 Lt | 112x 468x 182 cm (44” x 184” x 72”) | 1180 kg (2,596 lbs) 930 kg (2,026 lbs) |
