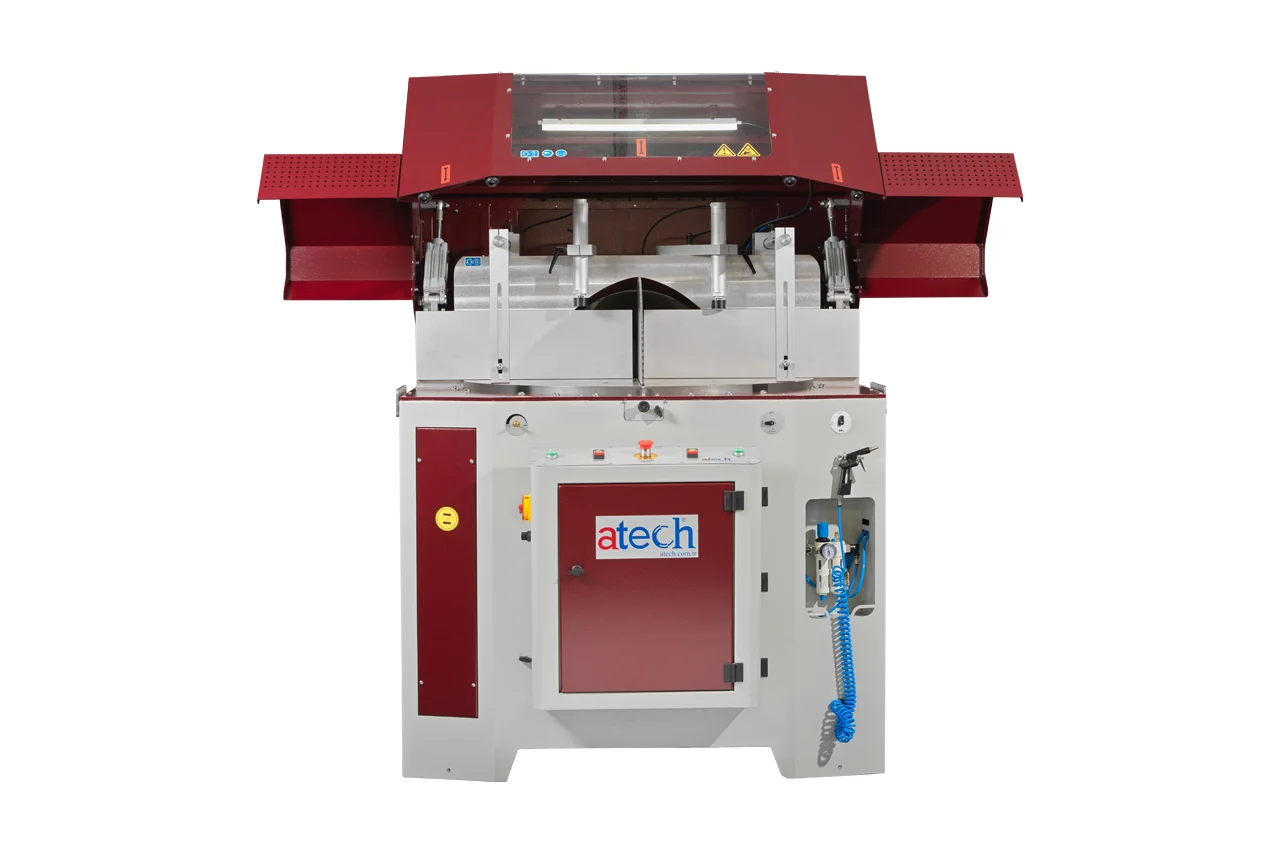

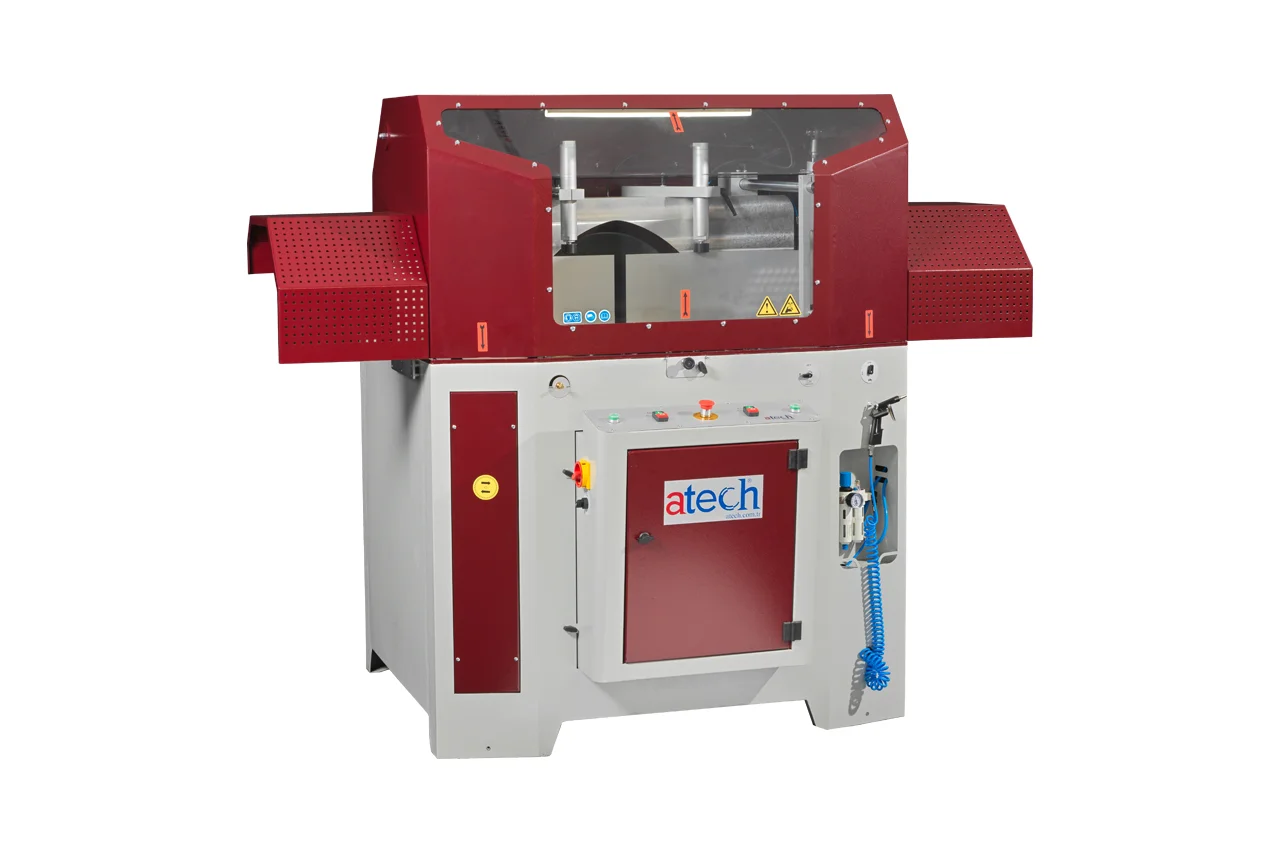

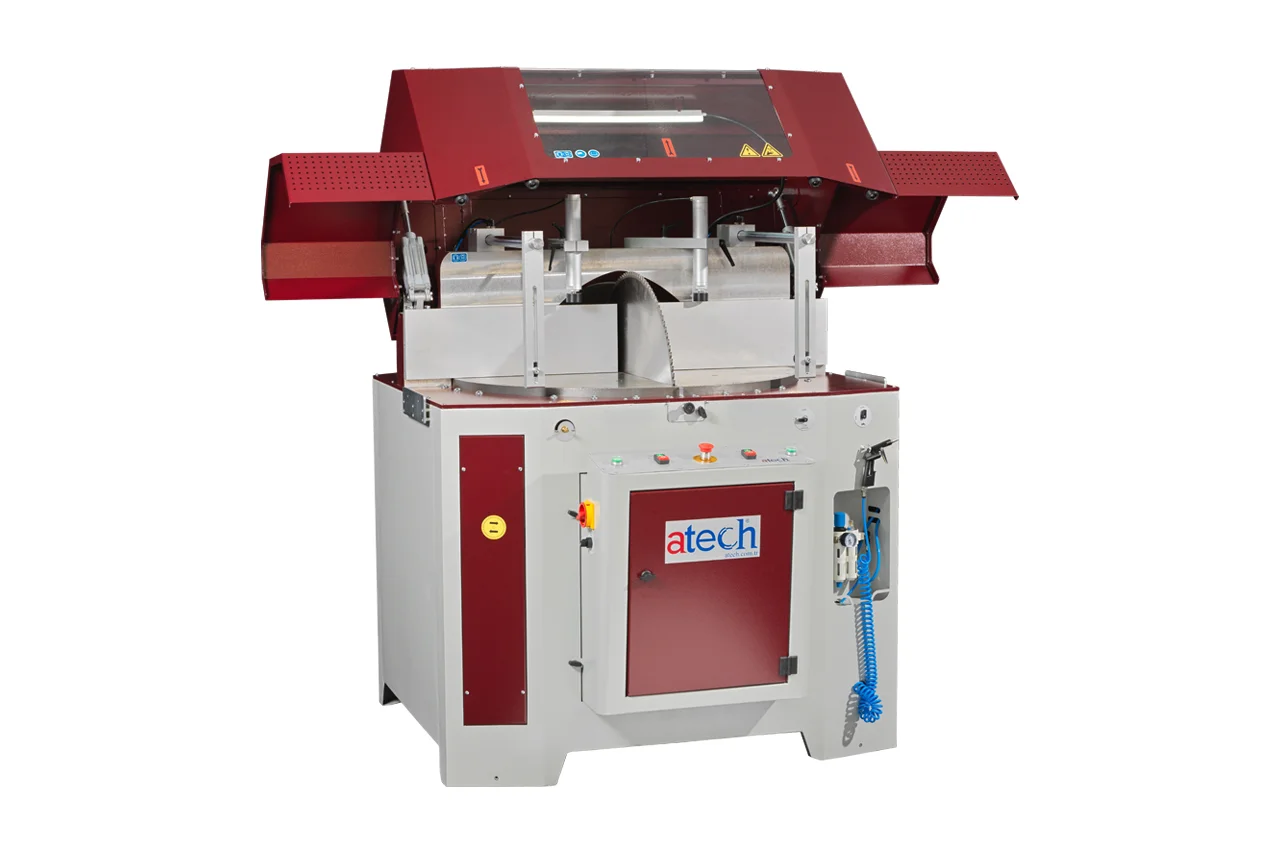

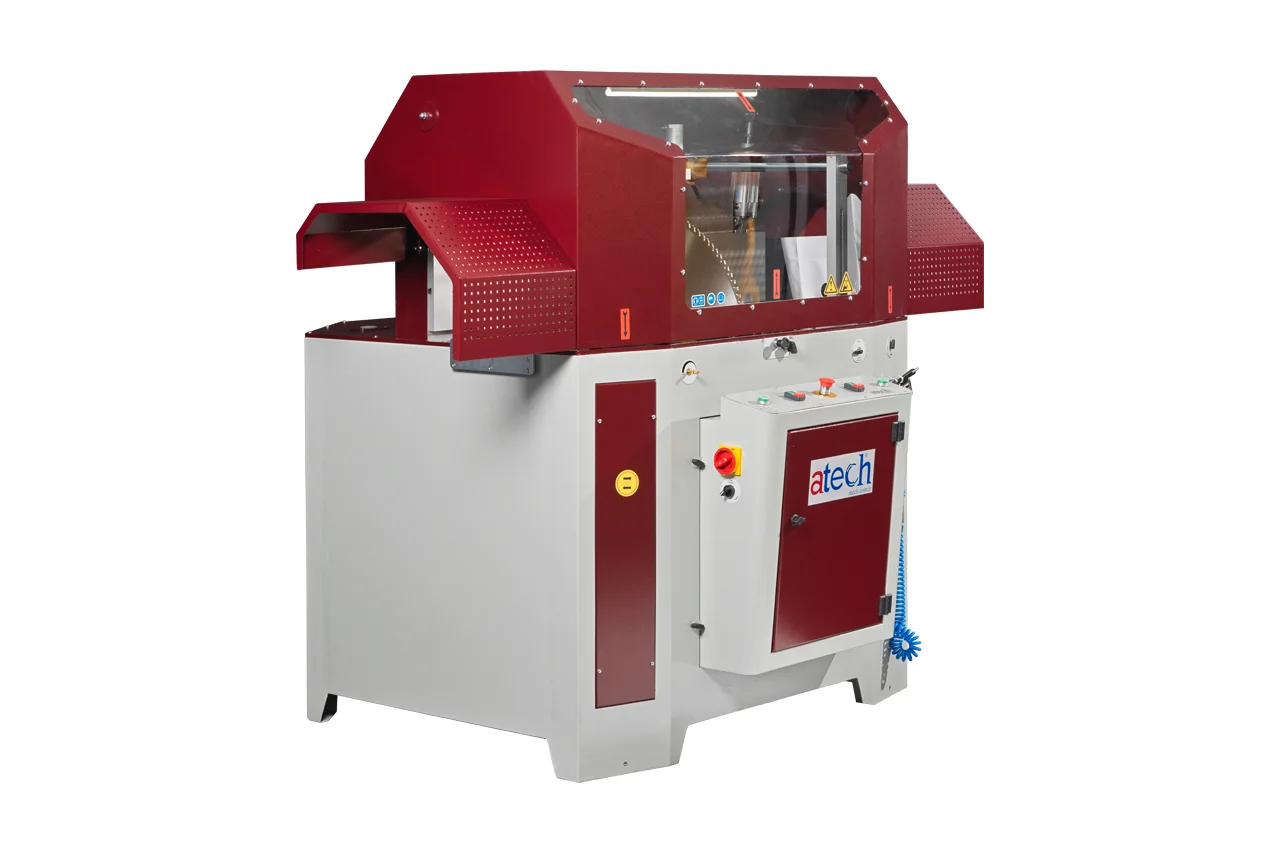

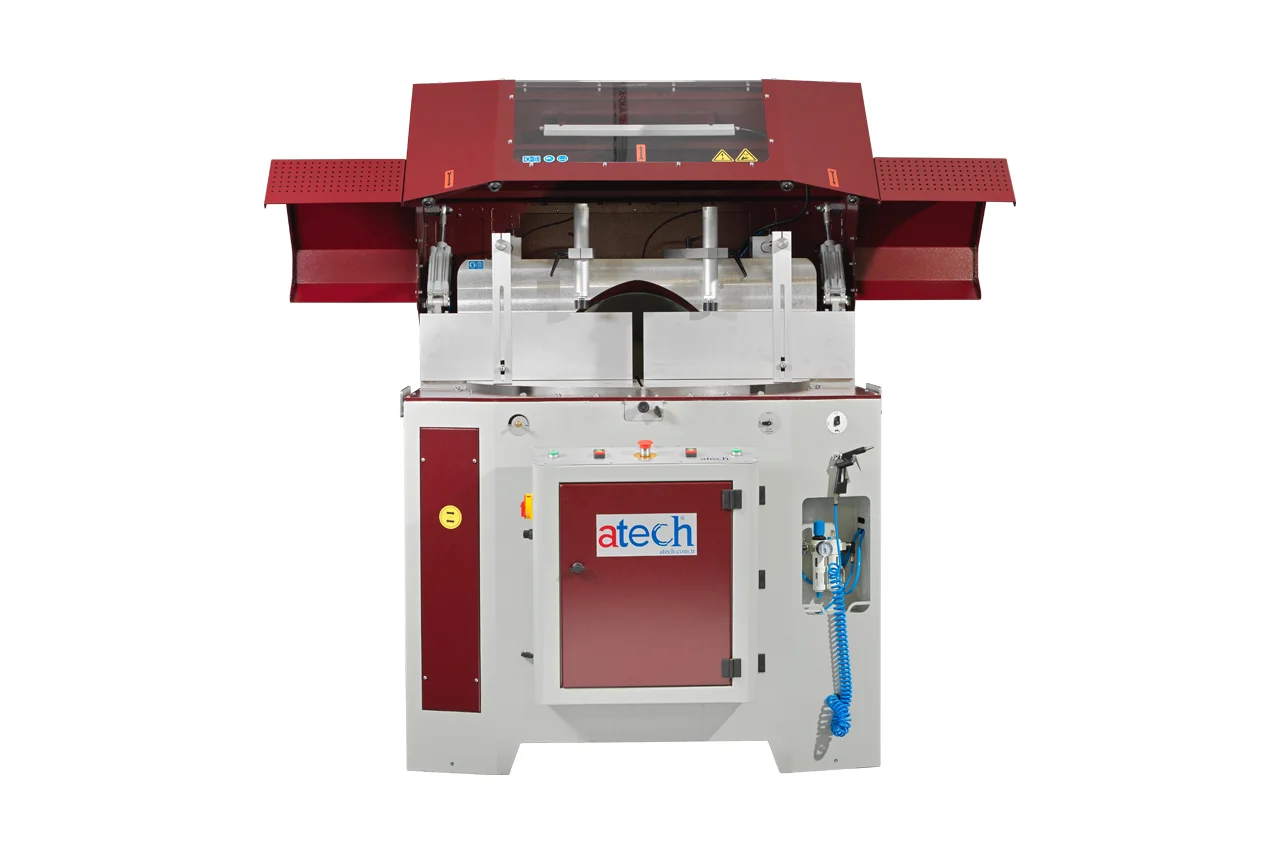

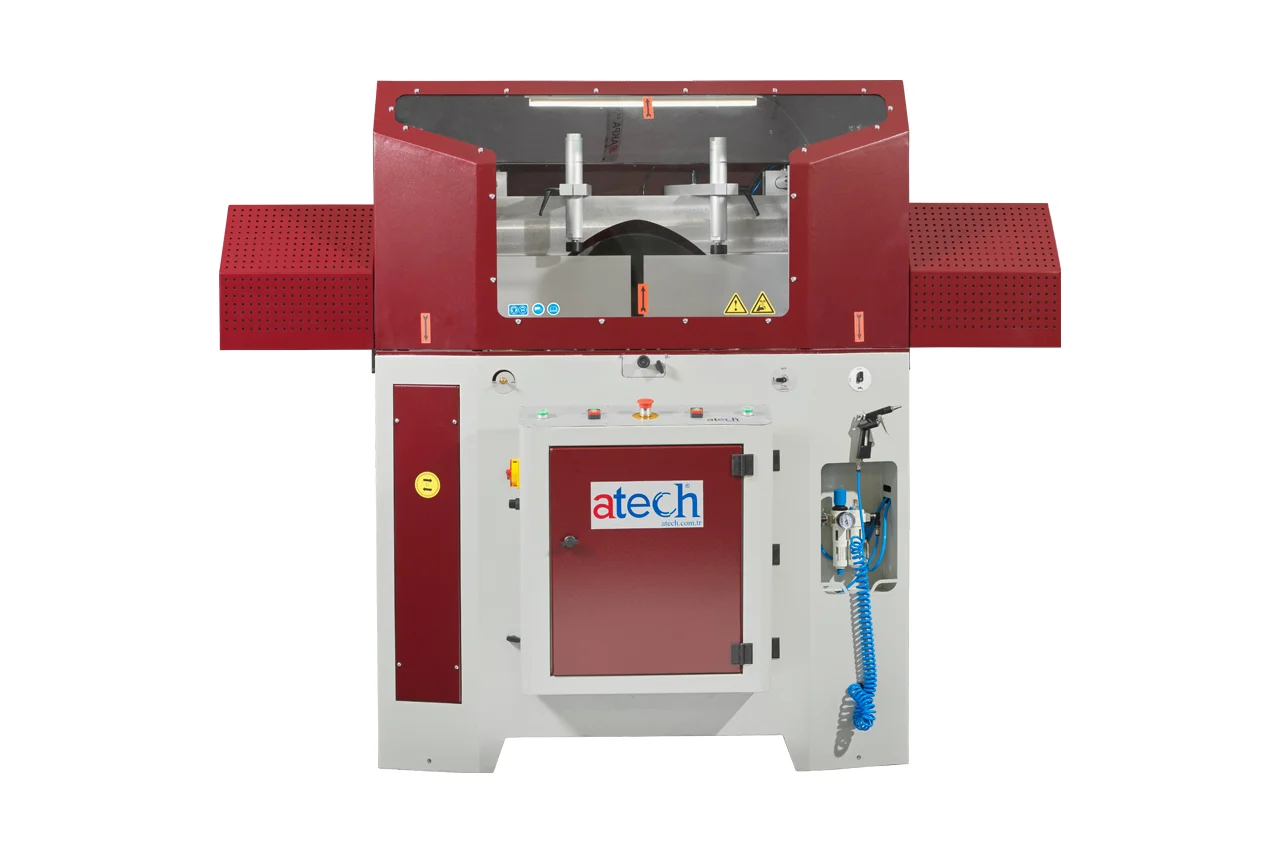

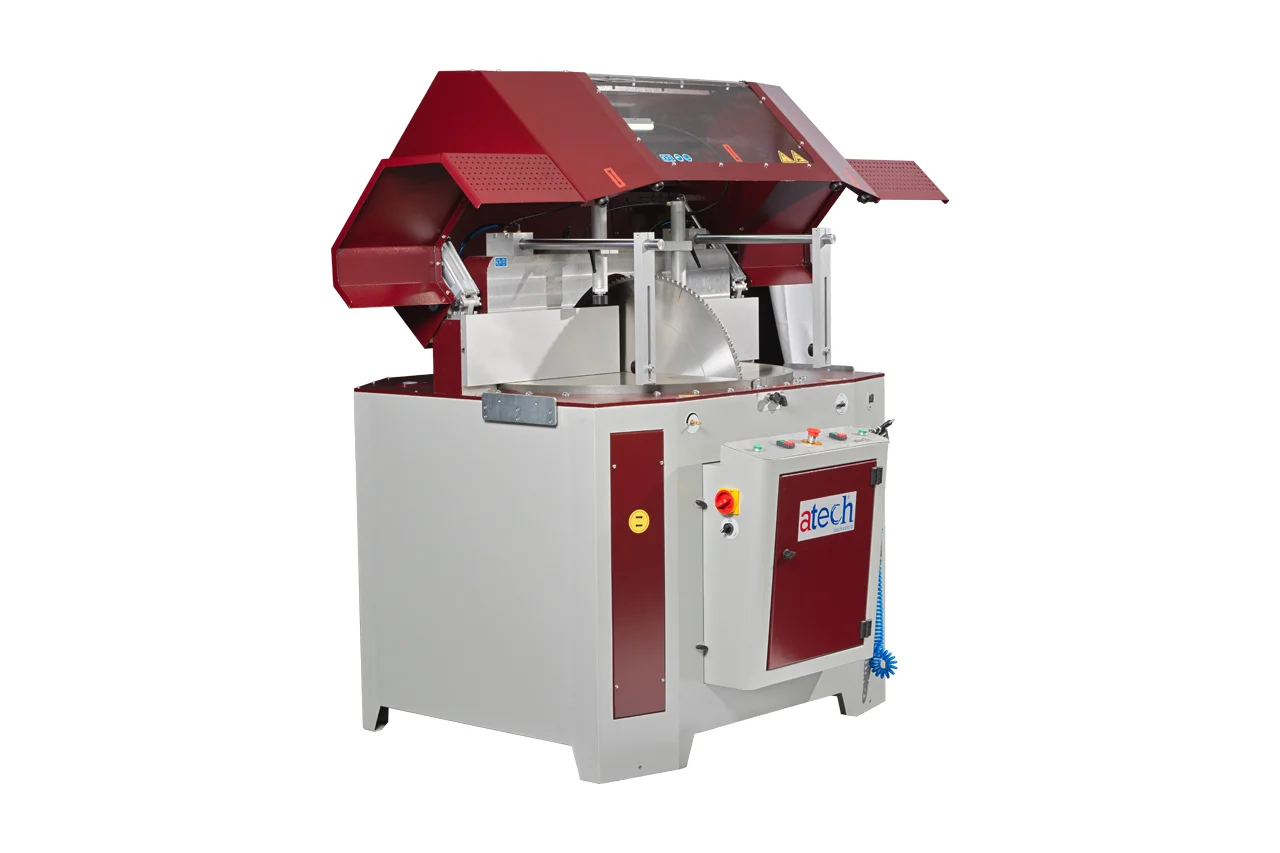

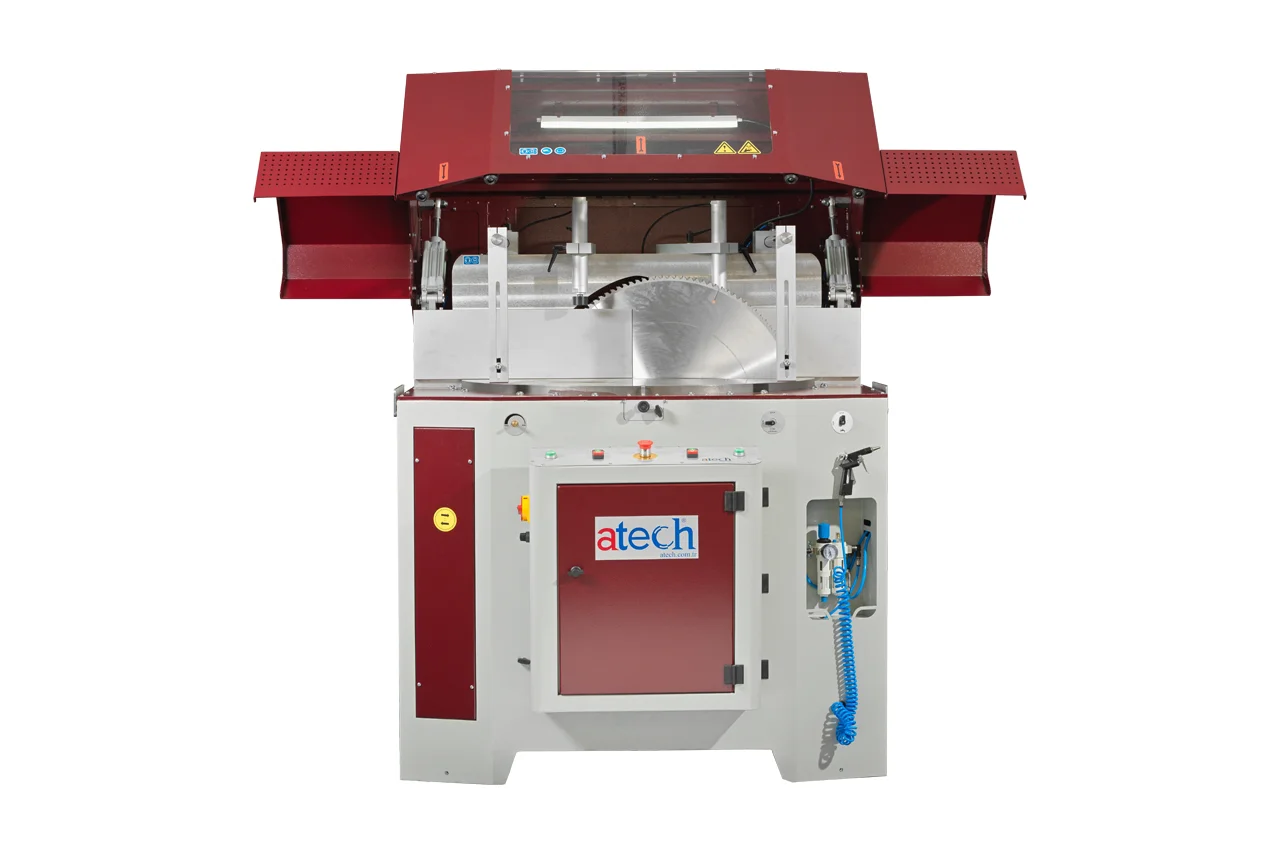

CRATER-06 A/700 is a heavy duty 28″ (700 mm) automatic upcut miter saw. The saw blade feed is hydro-pneumatic, which provides extra mechanical power in addition to the motor power. Powerful enough to cut solid aluminum, too. It is equipped with a high quality carbide tipped 700 mm (28”) saw blade, twin vertical & horizontal pneumatic clamps, pneumatic spray mist lubrication system, air gun and pneumatic safety top guard with LED lighting. Optional equipment includes infeed & outfeed tables, and heavy duty industrial type vacuum chip collector.

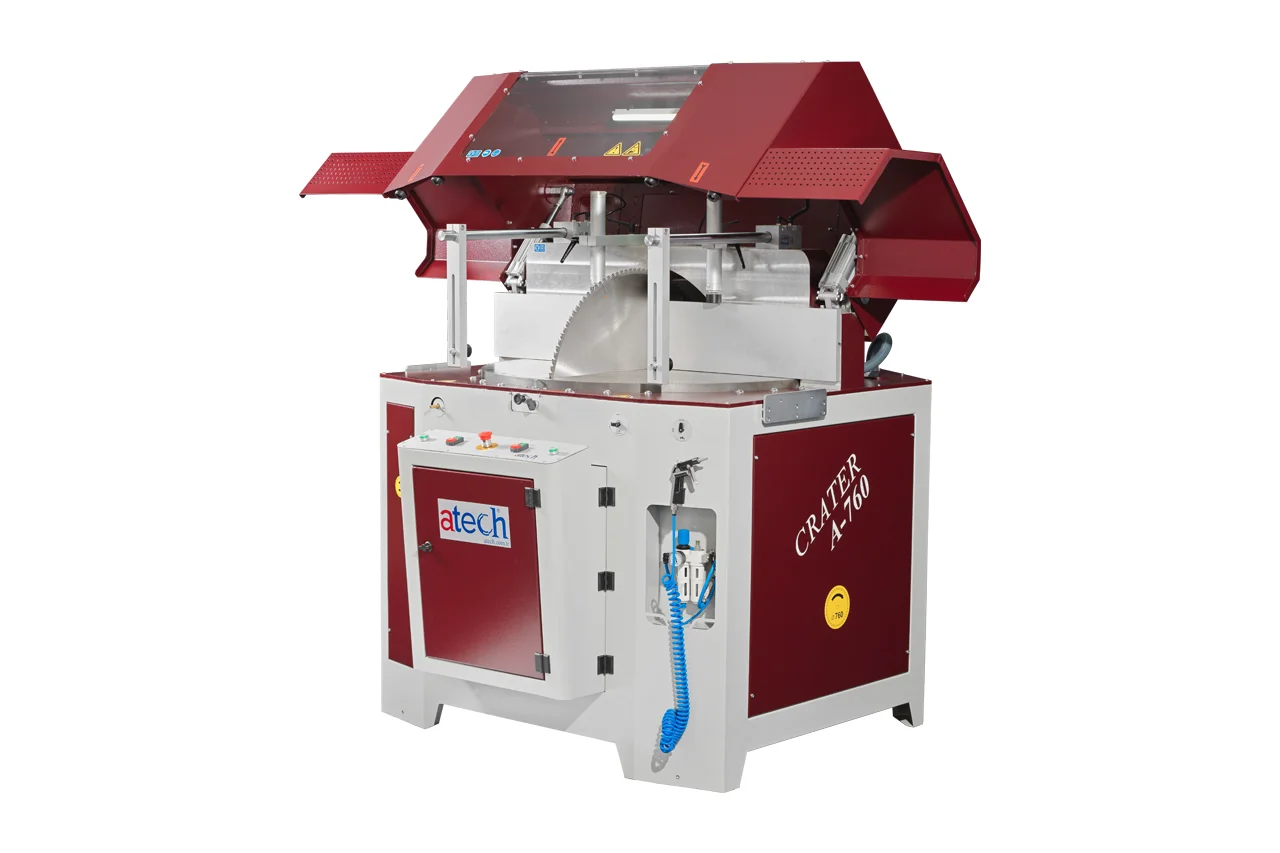

The Crater-06 A/700 heavy duty upcut miter saw is also available in 30″ (760 mm) saw blade version. Model name is Crater-06 A/760.
GENERAL FEATURES
- Two-hand safety operation
- Miter lock angles at 75°,60°,45°,30°,22.5°,15°,0° both left and right
- Pivoting range from -75° left to +75° right infinitely adjustable
- Hydro-pneumatic saw blade feed
- Adjustable saw blade rising speed
- Interior LED lighting
- Pneumatically opening safety guard
STANDARD EQUIPMENT
- Heavy duty upcut miter saw designed for straight and miter cuts of PVC (vinyl), aluminum extrusions and wood.
- 0-15°- 22, 5°- 30°- 45°- 60°-75° angle pin locks
- Two hands safety operation
- Intermediate angles are set via lock handle
- Hydro-pneumatic saw blade feed for smooth and precise cutting (fully adjustable)
- Adjustable saw blade rising speed
- Twin vertical pneumatic clamps (standard)
- Additional horizontal pneumatic clamp (standard)
- High quality carbide tipped 700 mm (28”) saw blade (standard)
- Pneumatic spray mist lubrication system
- Pneumatic safety top guard with LED lighting
OPTIONAL
- KN-DX 10′ or 20′ Manual Infeed Roller Table with Digital Read-Out
- KN-M 10′ or 20′ Manual Infeed Table
- ASP Automated Stop and Positioner (10′ or 20′)
- VCE 1570 Chip Collector
- Additional 28″ (700 mm) carbide tipped saw blade
TECHNICAL TABLE

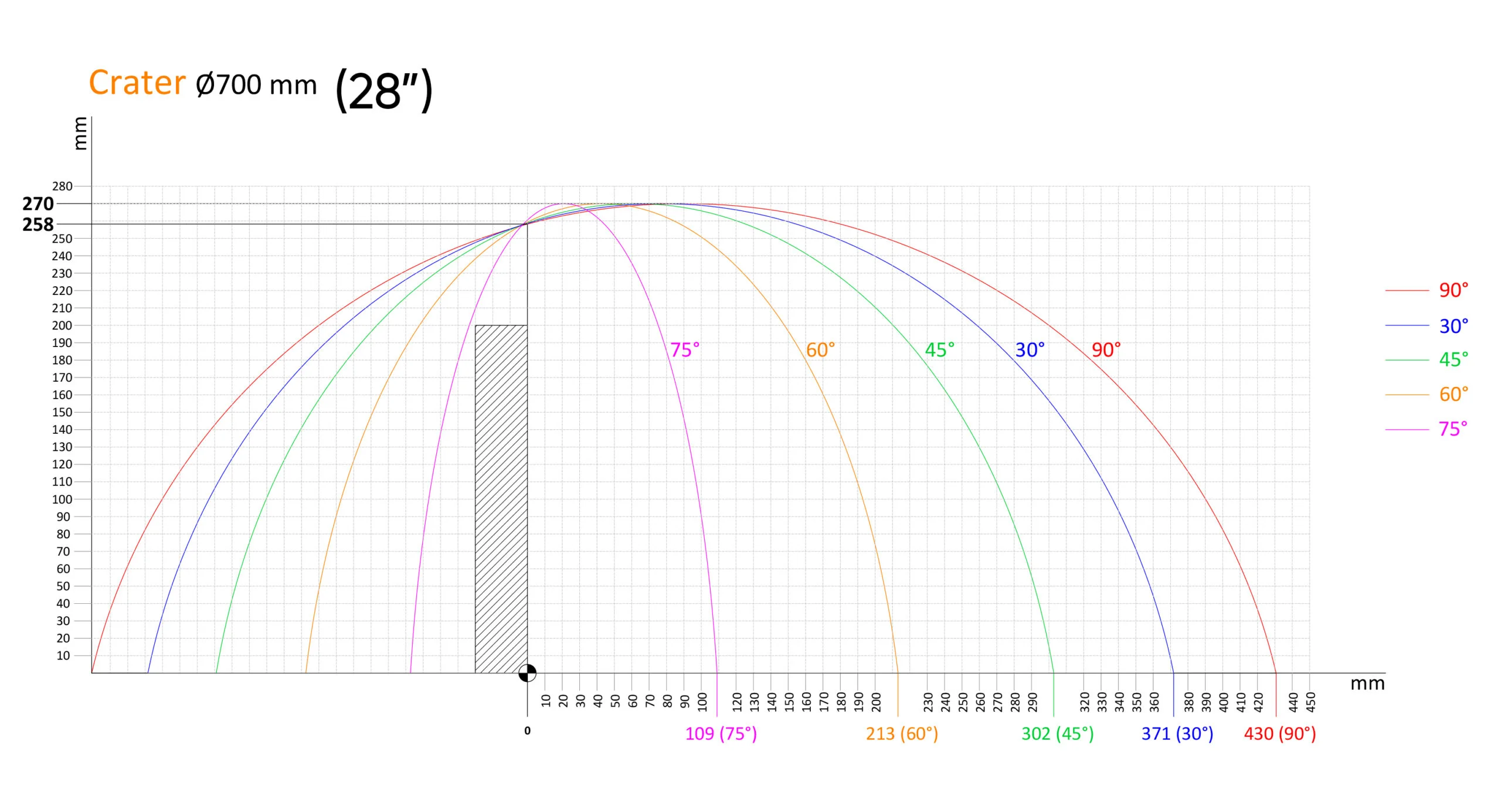

Crater 28″
| 4.0 kW, 5.5 HP 3-Phase 220V/440V | D = 700 mm (28”) d = 38 mm | 2000 rpm | 6-8 Bar/140 lt/min | 205 x 174 x 169 cm (81” x 69” x 67”) | 650 kg (1,430 lbs) |

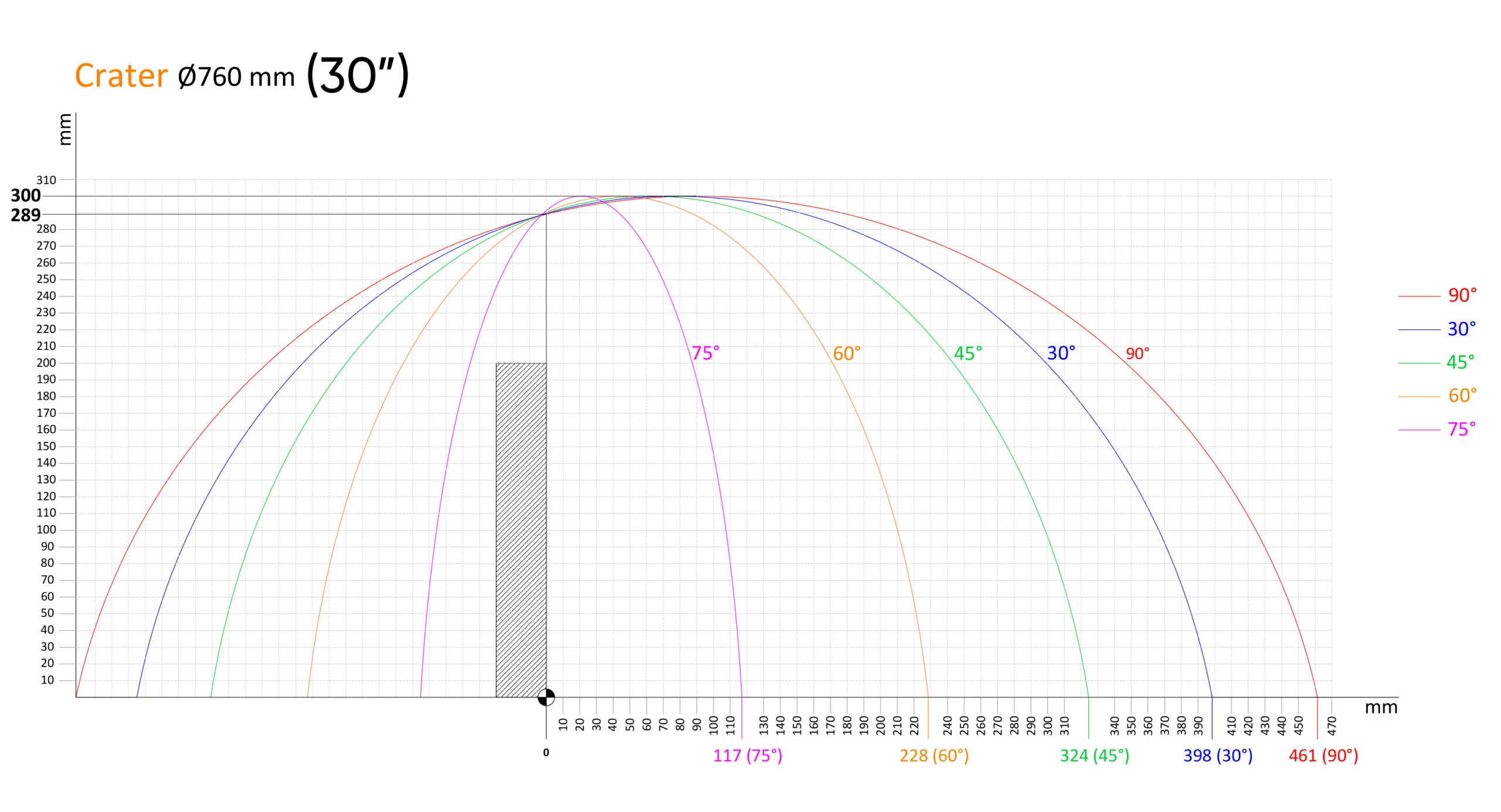

Crater 30″
4.0 kW, 5.5 HP 3-Phase 220V/440V | D = 760 mm (30”) d = 38 mm | 2000 rpm | 6-8 Bar/150 lt/min | 205 x 174 x 169 cm | 660 kg (1,452 lbs) |
