SCORPIO

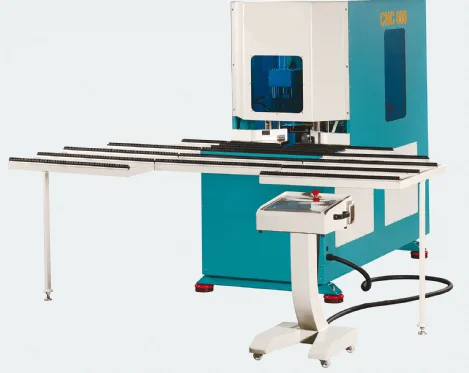

Scorpio-02 CNC is a CNC corner cleaning machine with 2 axes / 4 axes options. It designed for cleaning at 90° vinyl profile corners after welding operations. It has Windows based PLC control system with Touch Screen display and it is available with 2 or 4 servo motors. In addition to that, it has 11 tooling units comprising cutters, saw blade, drills and automatic lubrication system as well.
- CNC corner cleaning machine designed for cleaning at 90° vinyl profile corners after welding.
- Windows based PLC control system with Touch Screen display√ Available with 2 or 4 servo motors

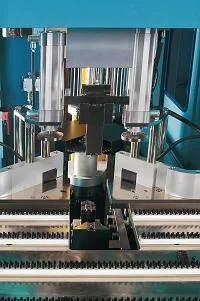

- 11 tooling units comprising cutters, saw blade, drills
- White and colored profile recognition from the control panel
- Access to stored programs enables easy repetitive operations
- Different cutters for white and colored profiles

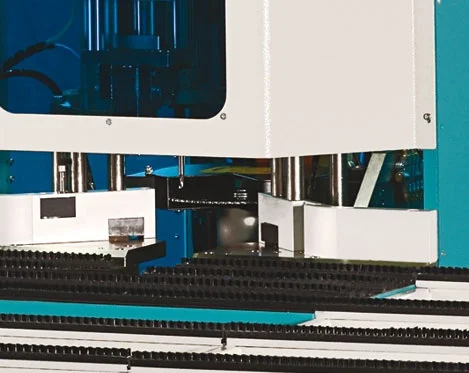

- Simultaneous upper and lower profiles cleaning independently of other cleaning units
- Automatic lubrication system
- Machine has been desgined in accordance with CE, UL, CSA Safety Directives
- Min. Frame Size: 16”x16” Max. Profile Size: 5”x5” Min. Profile Size: 1.2”x1.2”
- Available with 2 and 4 servo motor
| 5 HP 220V/440 V 60 Hz 3- Phase | d=30/32 mm D=10” | 3000 rpm | 90-120 psi 5 CFM | 40”x60”x74” | 2,460 lbs |
CNC Corner Cleaning Machine
Scorpio-02 CNC is a CNC corner cleaning machine with 2 axes / 4 axes options. It designed for cleaning at 90° vinyl profile corners after welding operations. It has Windows based PLC control system with Touch Screen display and it is available with 2 or 4 servo motors. In addition to that, it has 11 tooling units comprising cutters, saw blade, drills and automatic lubrication system as well.
The machine has white and colored profile recognition from the control panel. Besides, access to stored programs enables easy repetitive operations. It has different cutters for white and colored profiles as well.
Scorpio-02 CNC has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Scorpio-02 CNC at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
