LIBRA
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Libra pro; is a 4 axis fast and precise router machine. Its platform turning range is +90° to -180° by virtue of this feature it can proces... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

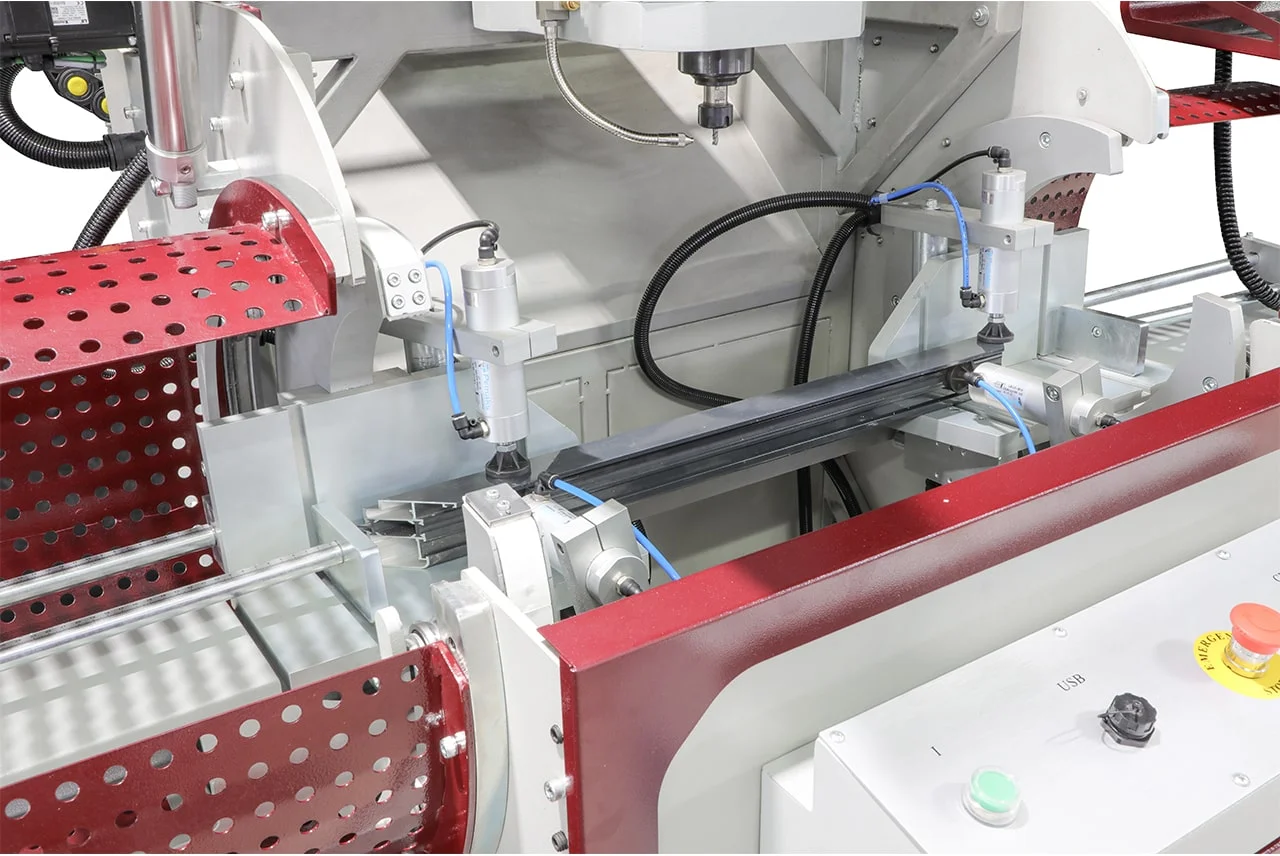

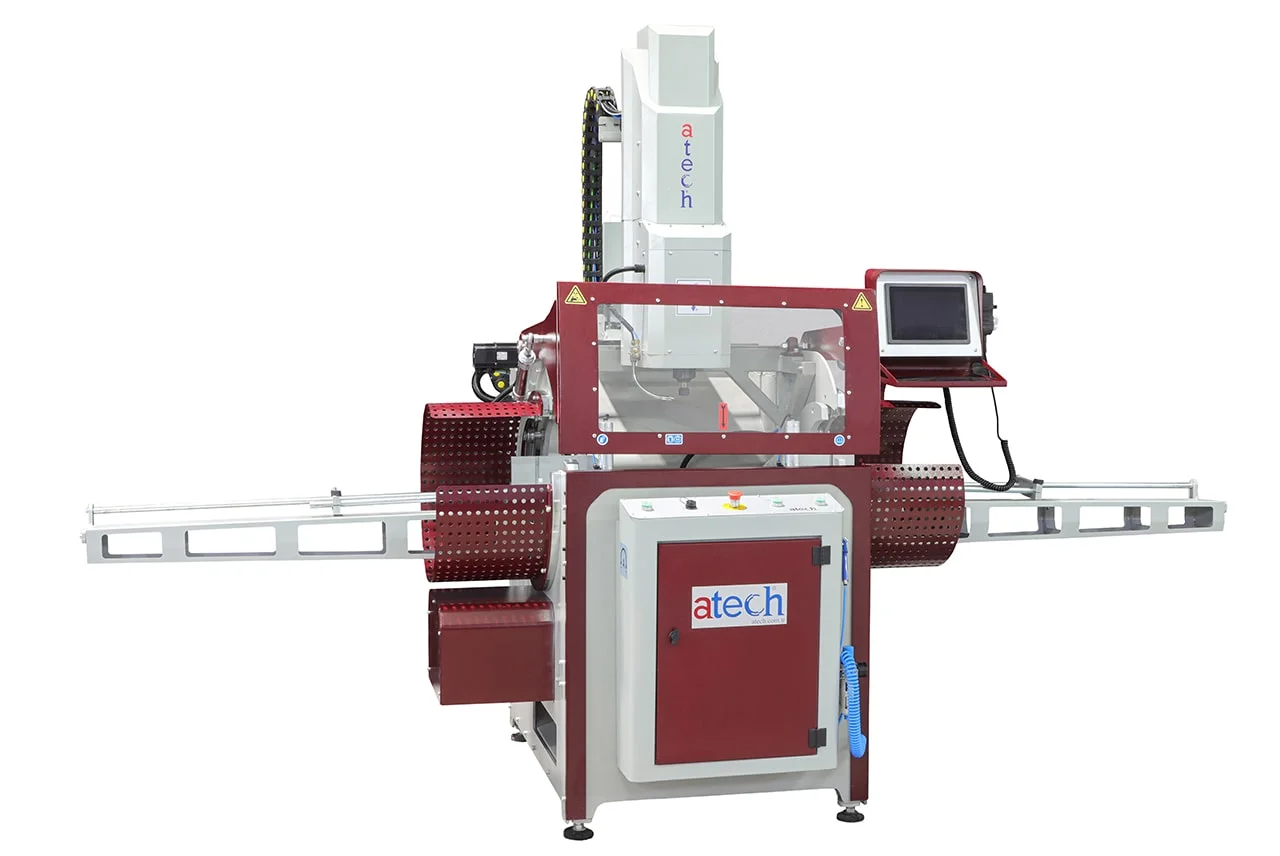

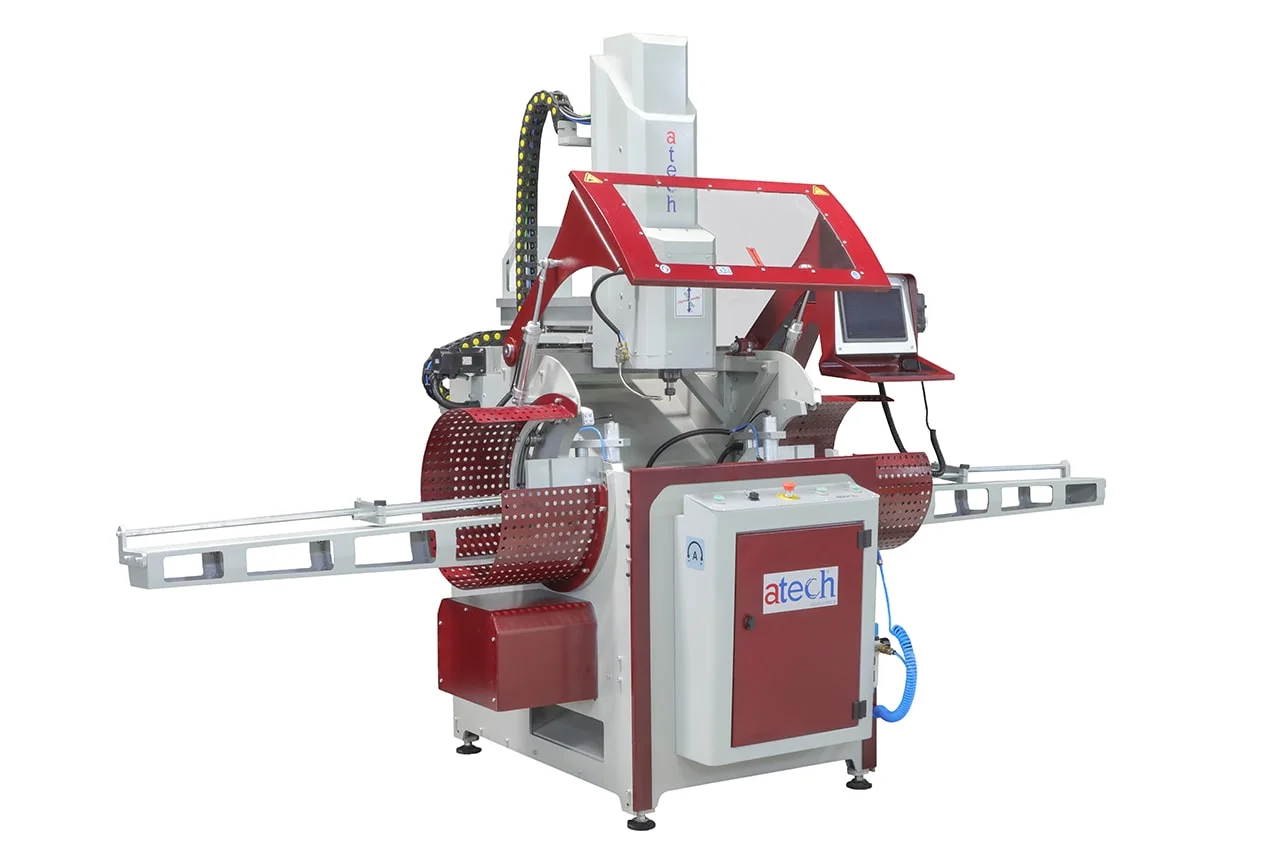

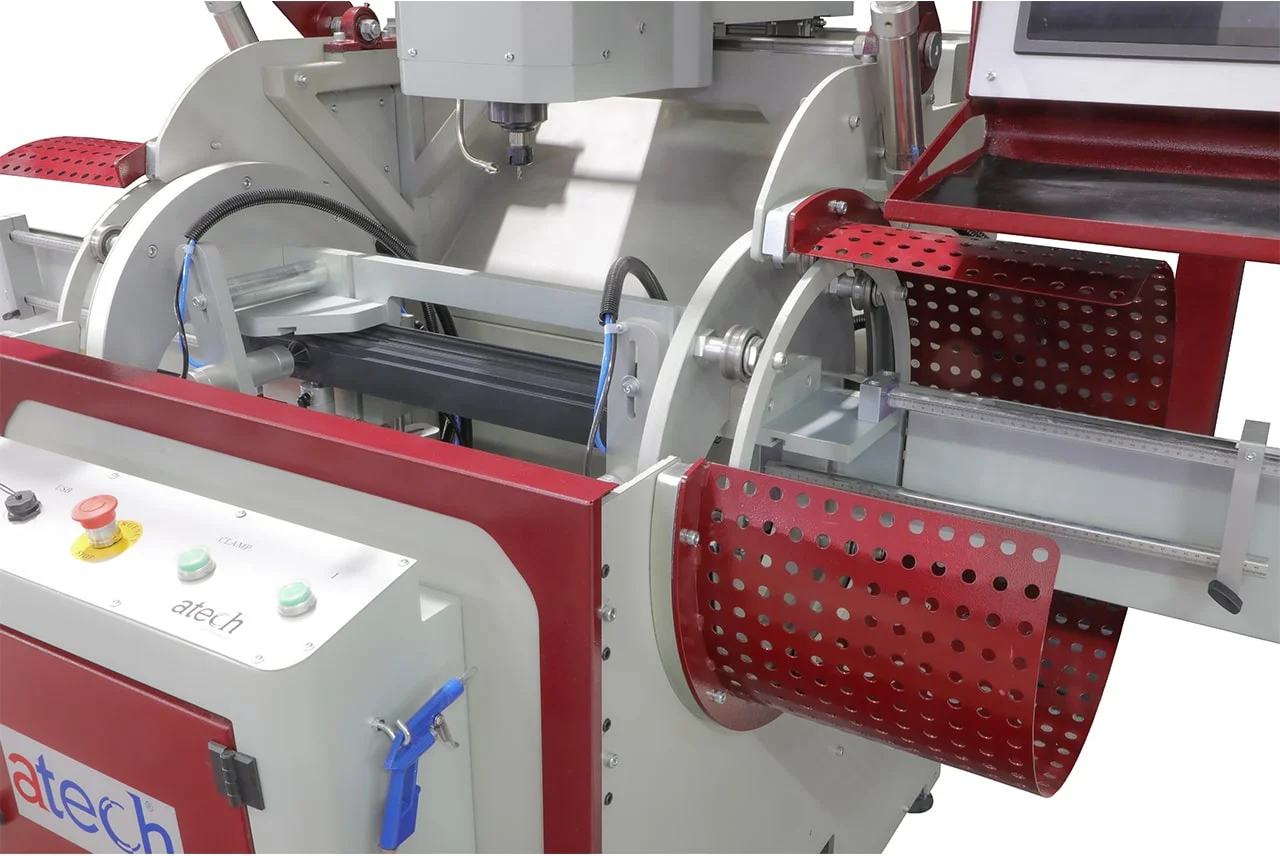

Libra pro; is a 4 axis fast and precise router machine. Its platform turning range is +90° to -180° by virtue of this feature it can process 4 surfaces of aluminium and PVC profiles in a single process without needing a physical template.
GENERAL FEATURES
- 2.6 kW 12.000 rpm Spindle Motor
- X = 370 mm, Y = 130 mm, Z = 130 mm processing capacity
- 10” PC Touch Screen
- With ER20 collet wrench max. Ø13 mm working tools can be attached
- Robust machine body
- Equipped with modem for remote access via Internet for fast support and programming
STANDART EQUIPMENT
- Ø8 mm x L = 120 mm router tool
- 2 pcs horizontal clamps
- 2 pcs vertical clamps
- Spray router cooling system
- Air gun
- Right and left profile rests
- Service key (20mm)
- Collet wrench
OPTIONAL
- Barcode reader
- Extra clamps
- Connection mould fixture for special profiles
- Custom router bit up to max. 13 mm
