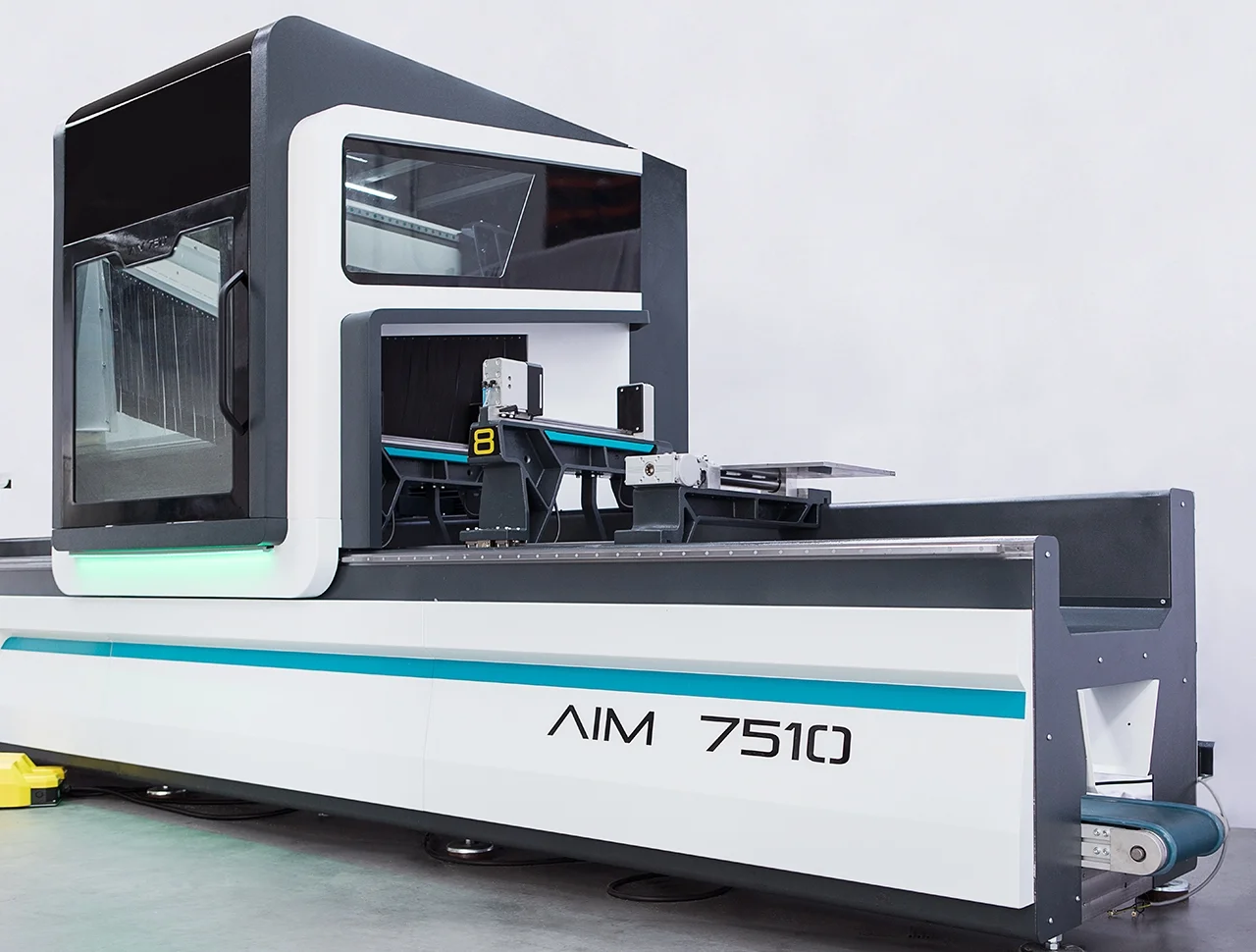

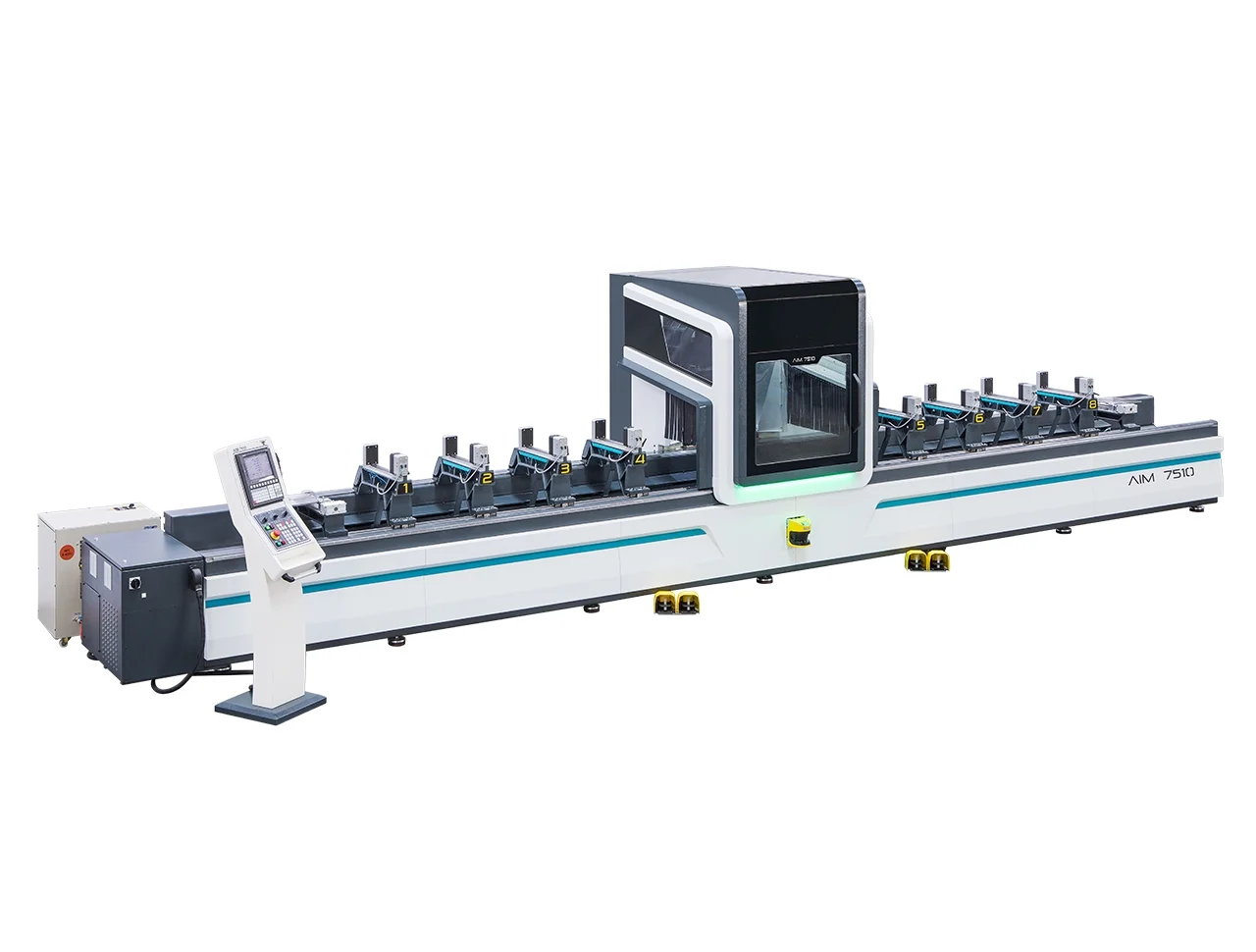

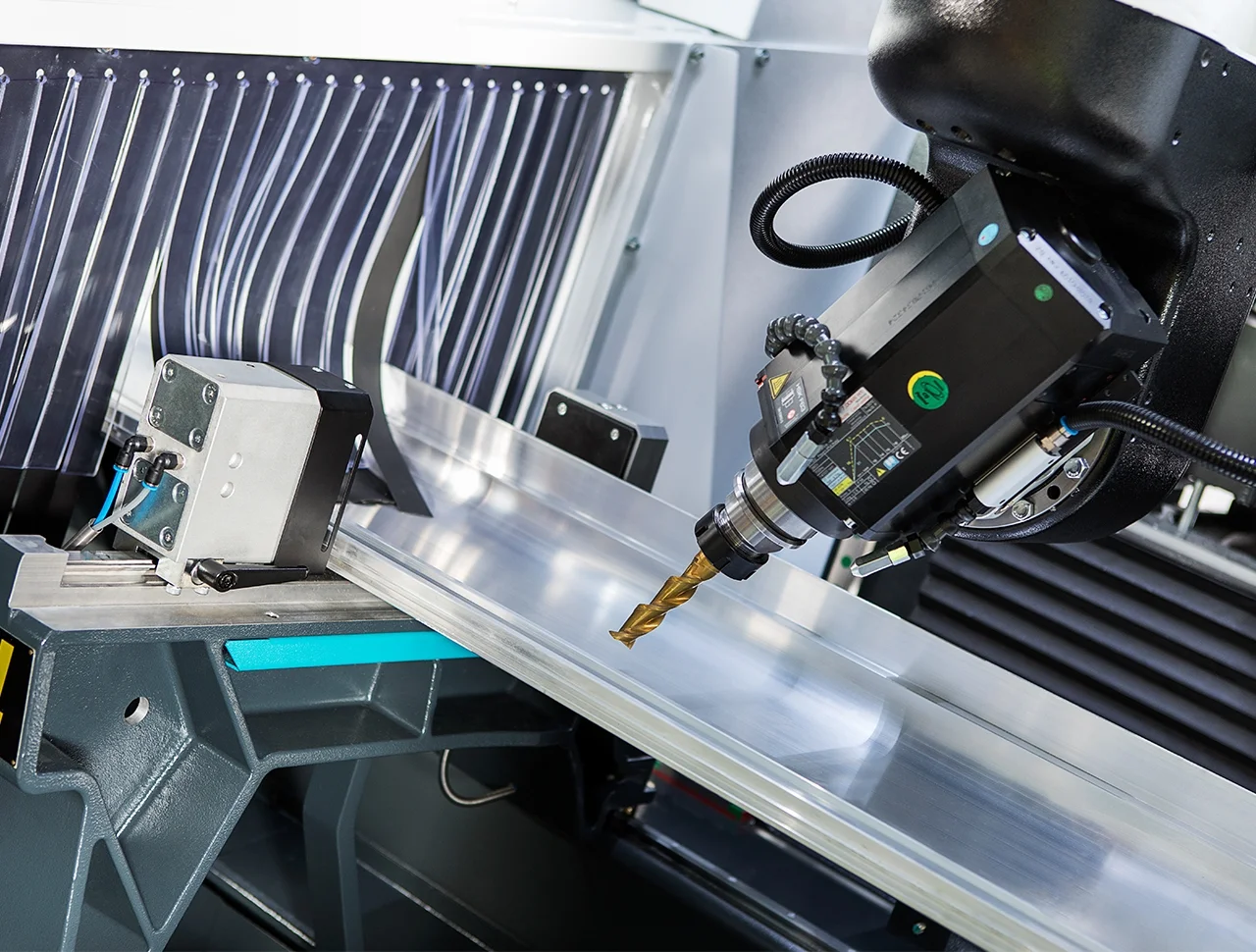

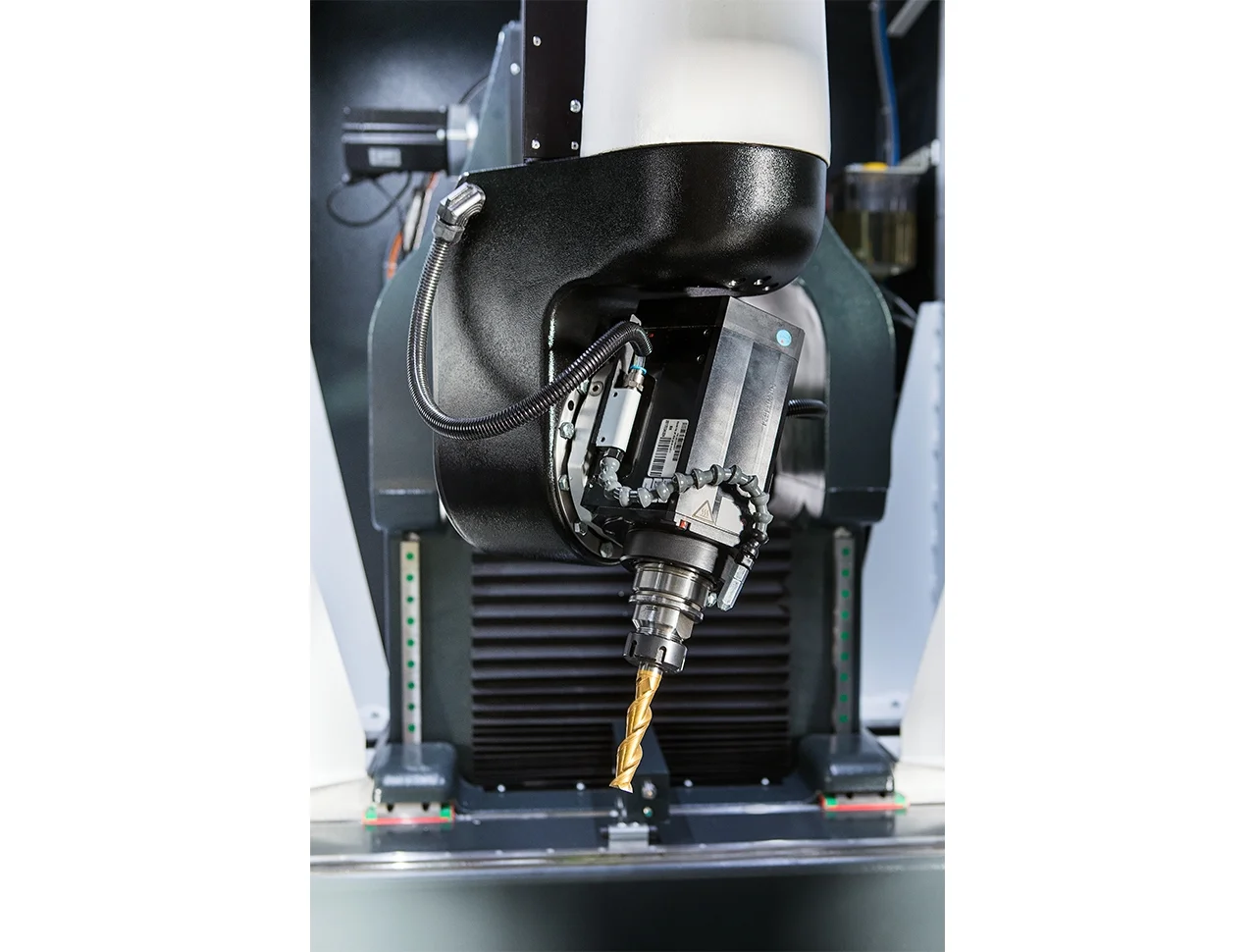

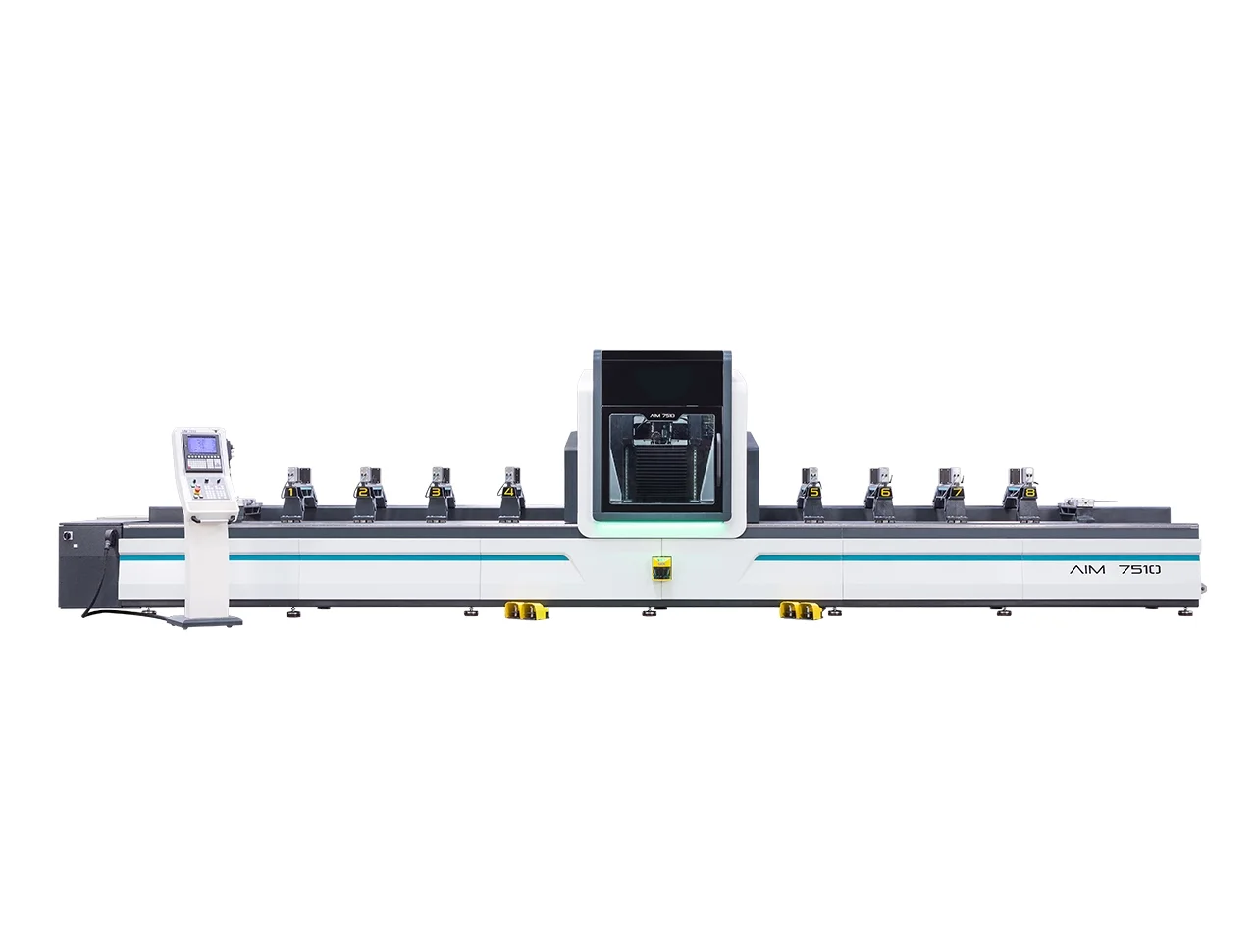

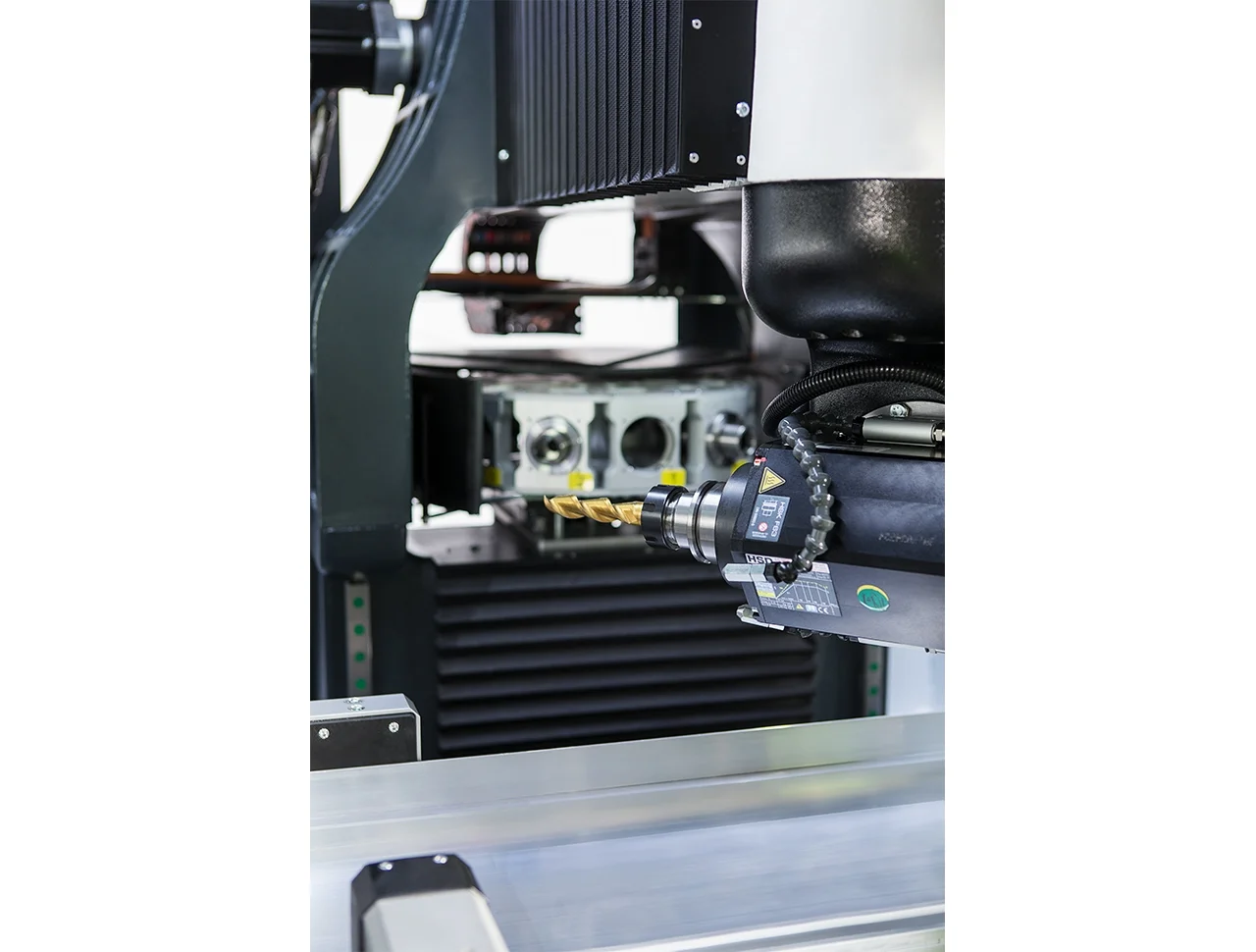

AIM 7510 is 5-axis servo controlled machining center which is designed to perform drilling, grooving, notching, taping, saw milling, etc. on all kinds of aluminum & PVC profiles, light alloys in general and thin walled steel profiles.
General Features

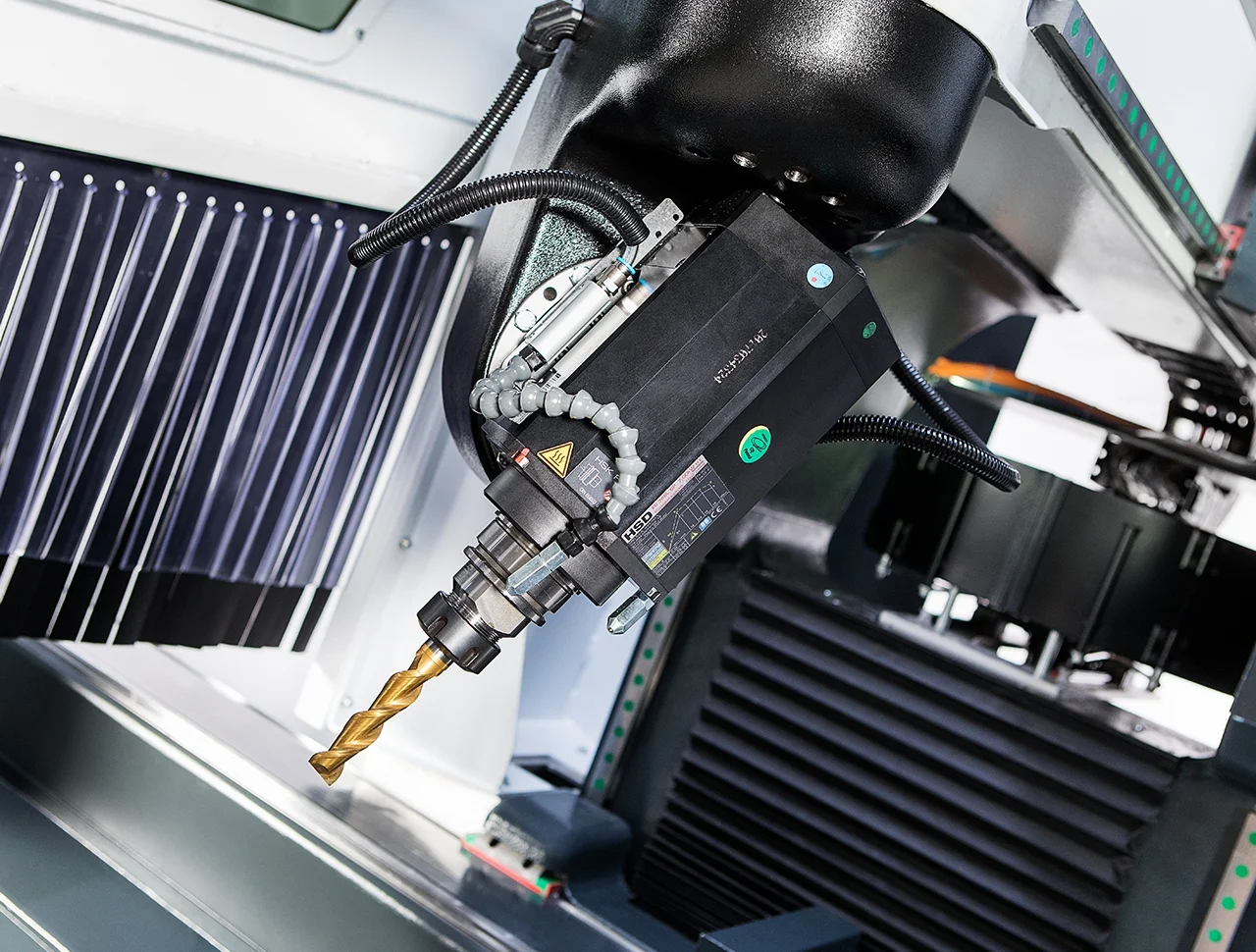

- CNC automation system providing motion control at 5-axis
- Uninterrupted machining property by means of the tandem mode to prevent waste of time
- Easy to programm with user-friendly CAMPROX CAM

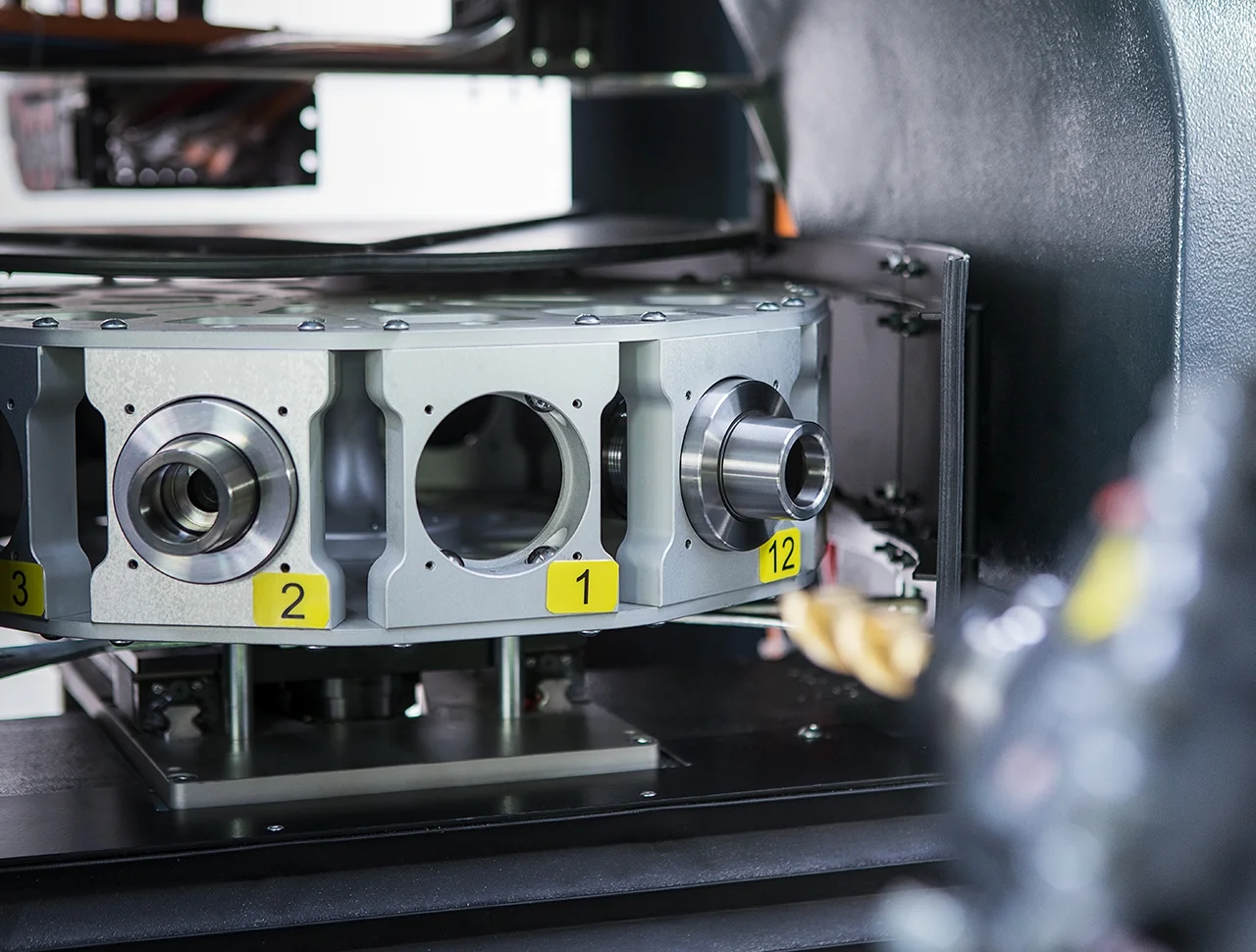

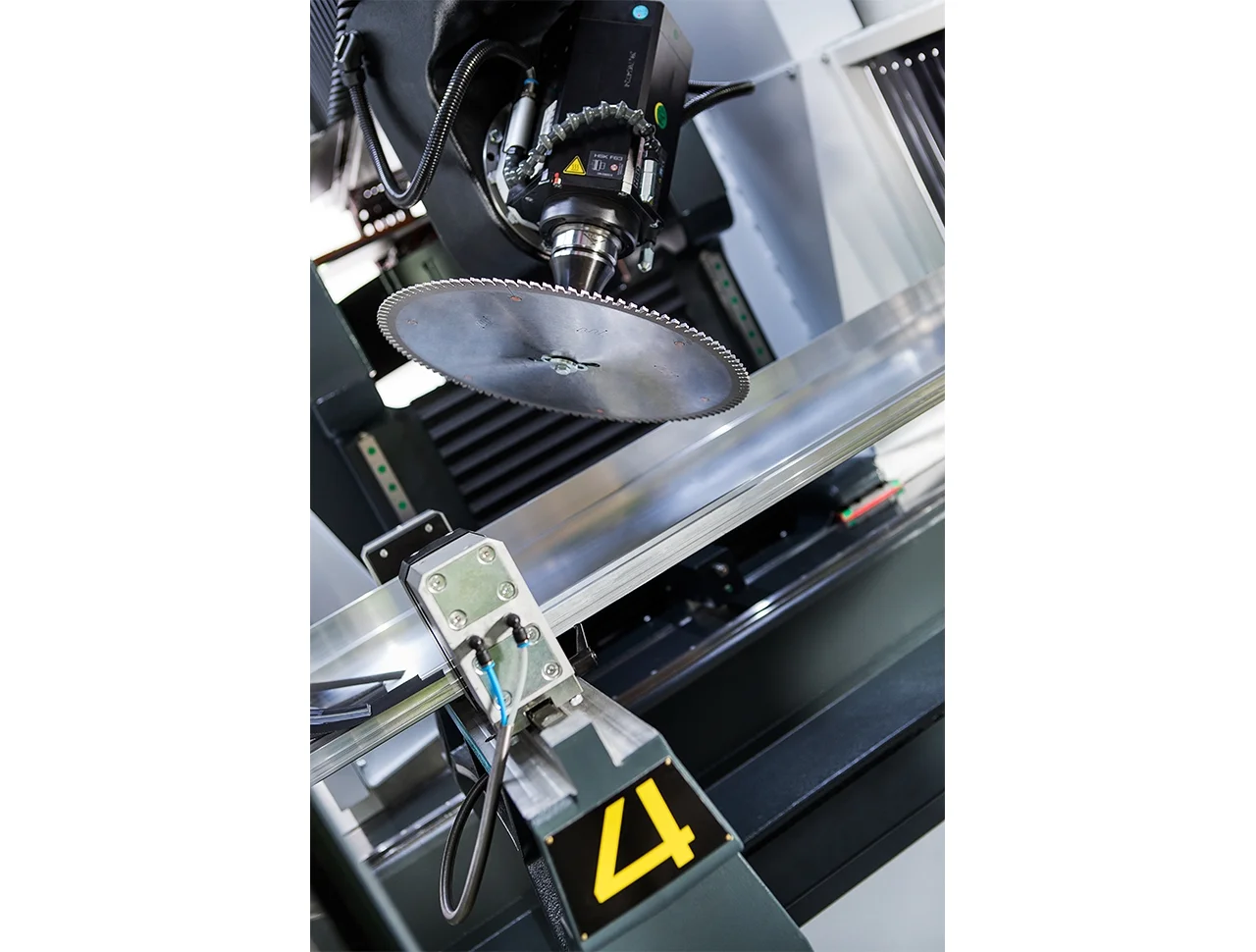

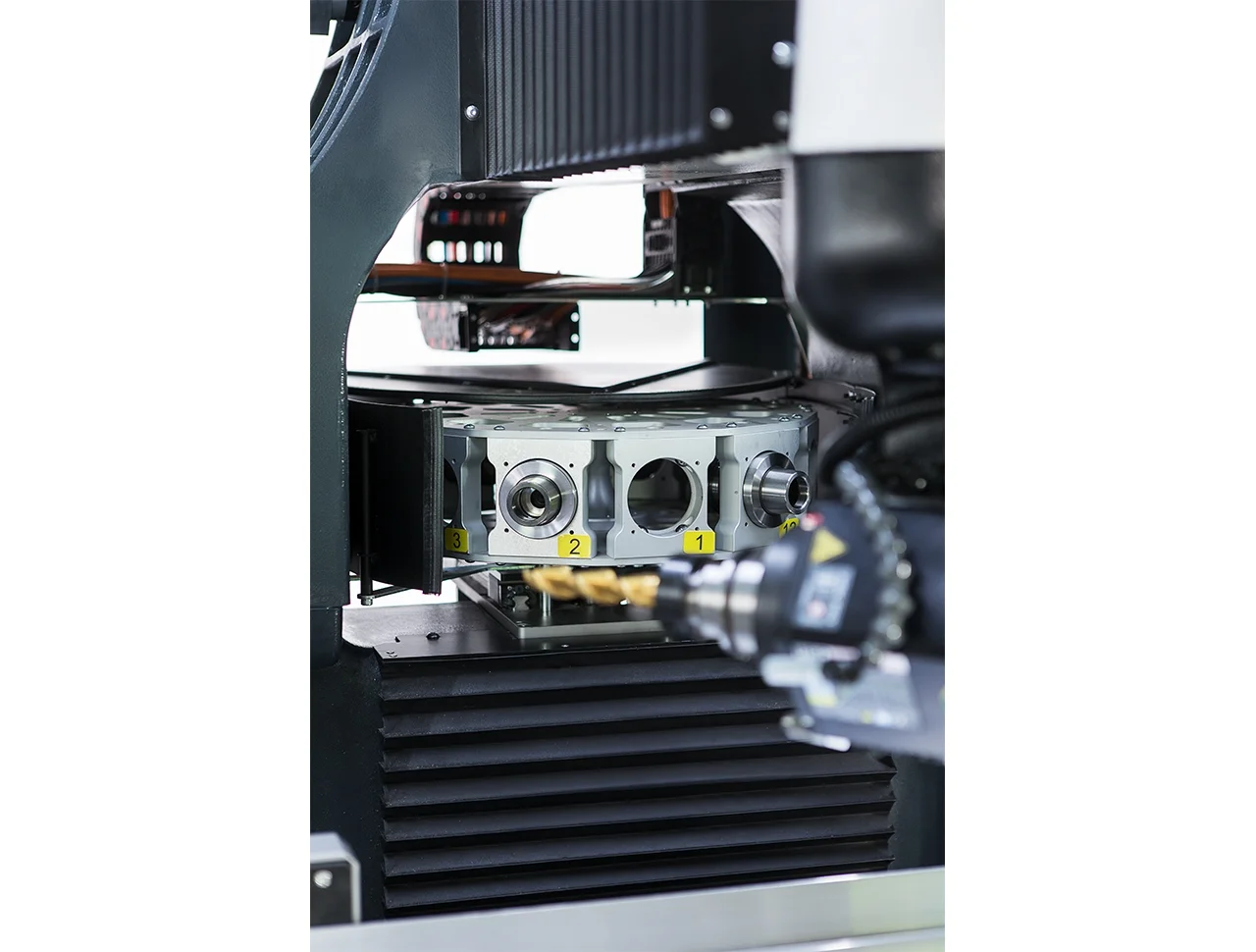

- 2 x separate magazine unit for 12 standard tools and 1 for saw blade with 350 mm dia.
- Solid steel construction of the body and dynamic performance gantry
- Automatic clamp recognition and clamp positioning are available
- Special sound insulation cabinet around the machining center
- CNC controlled spray tool lubrication system

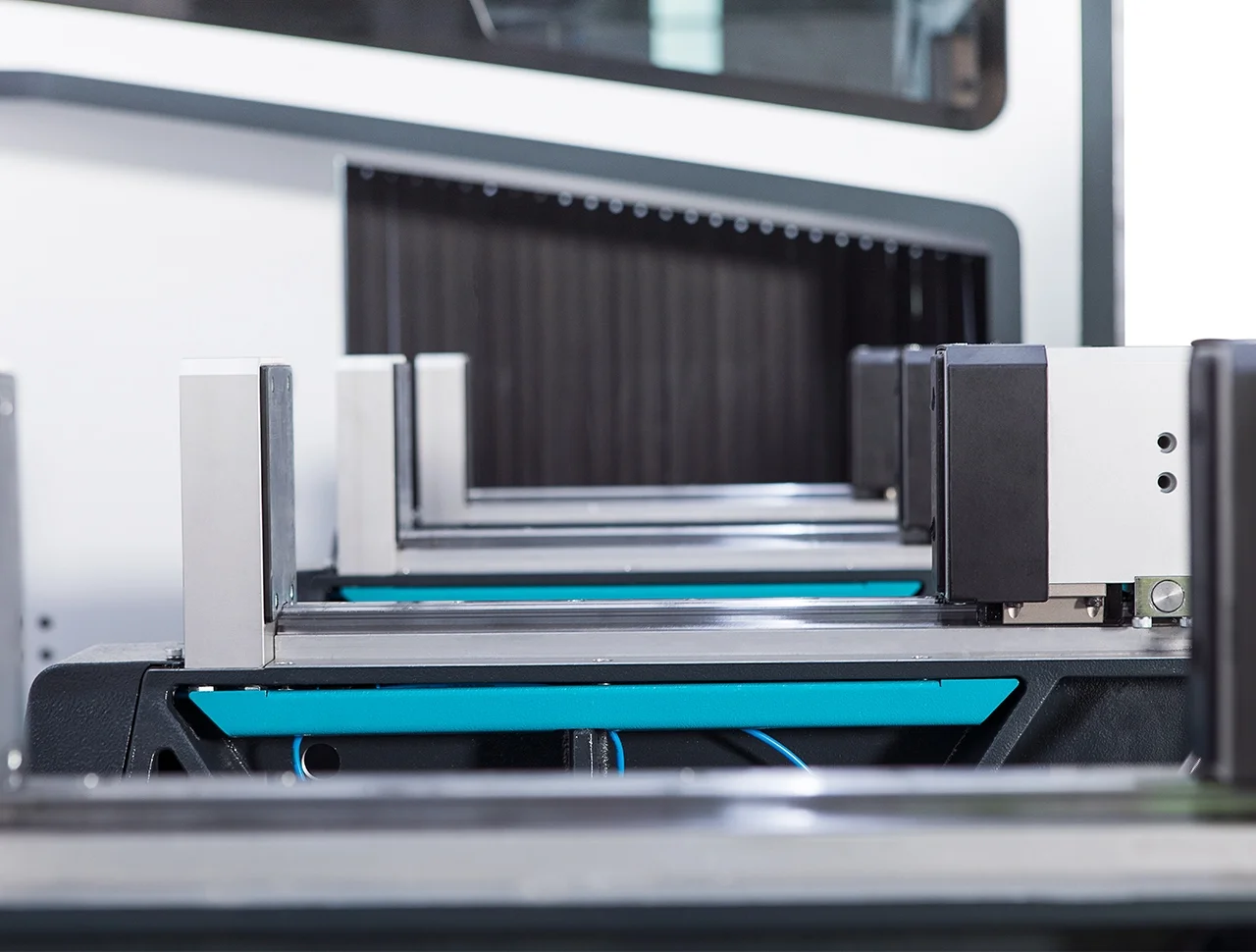

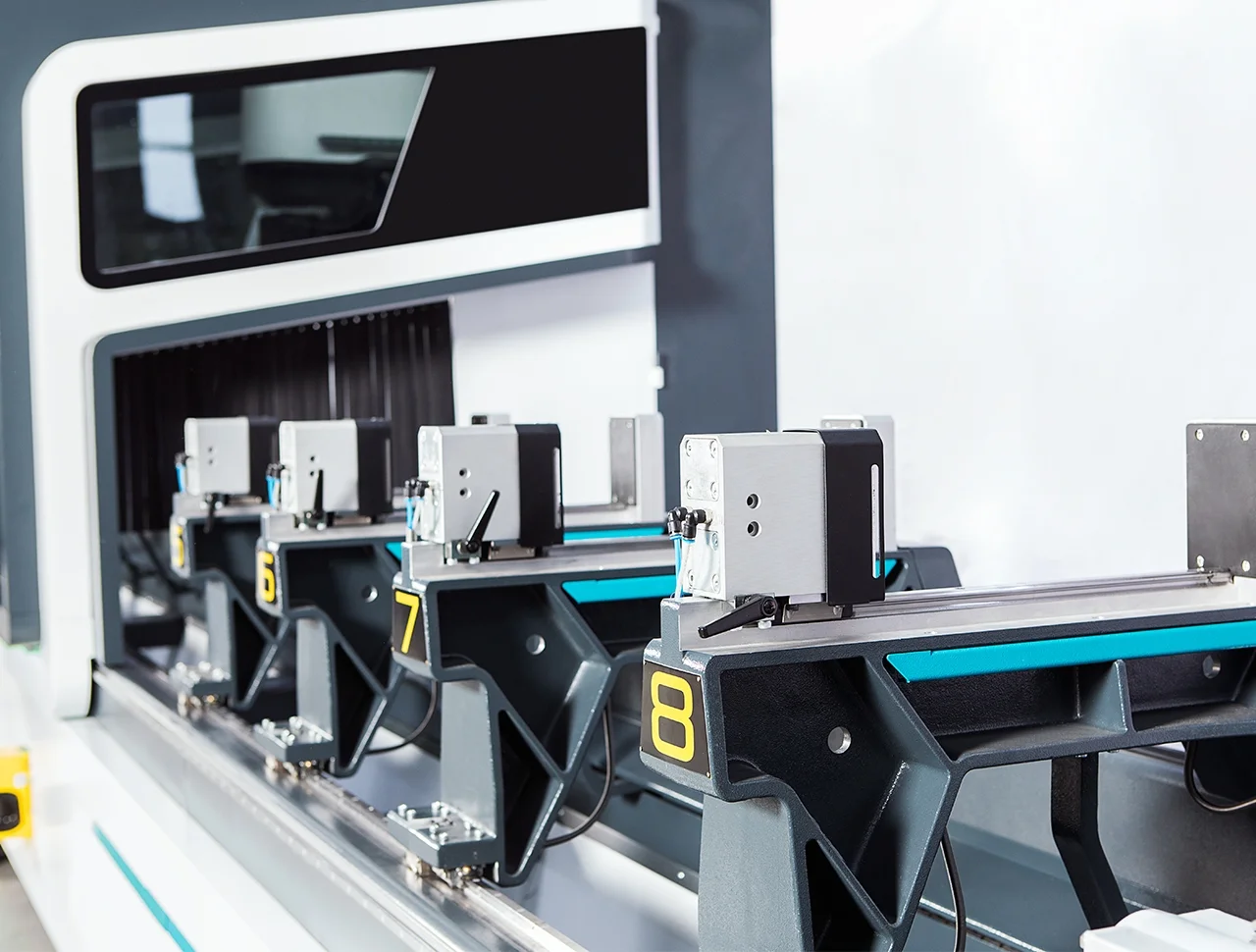

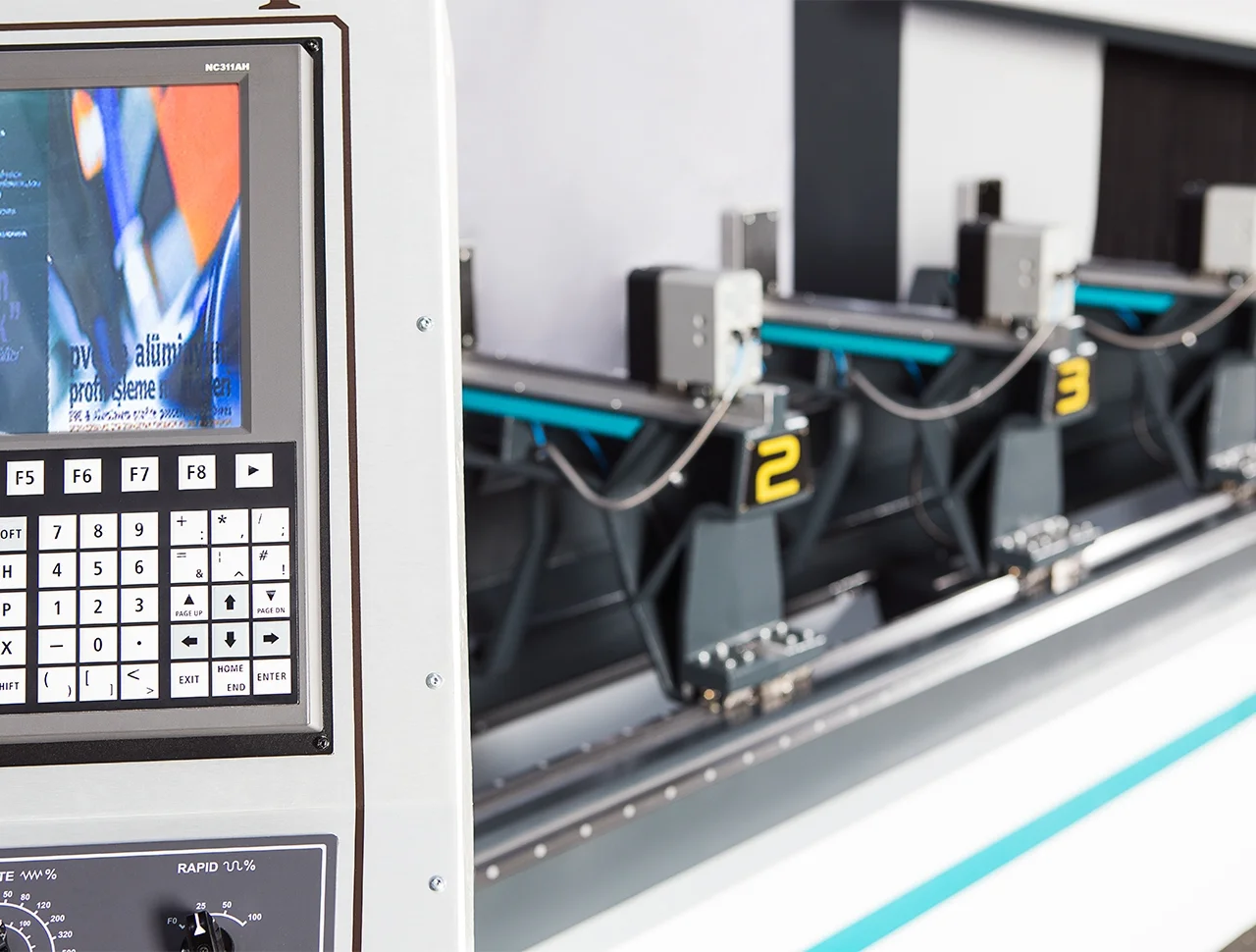

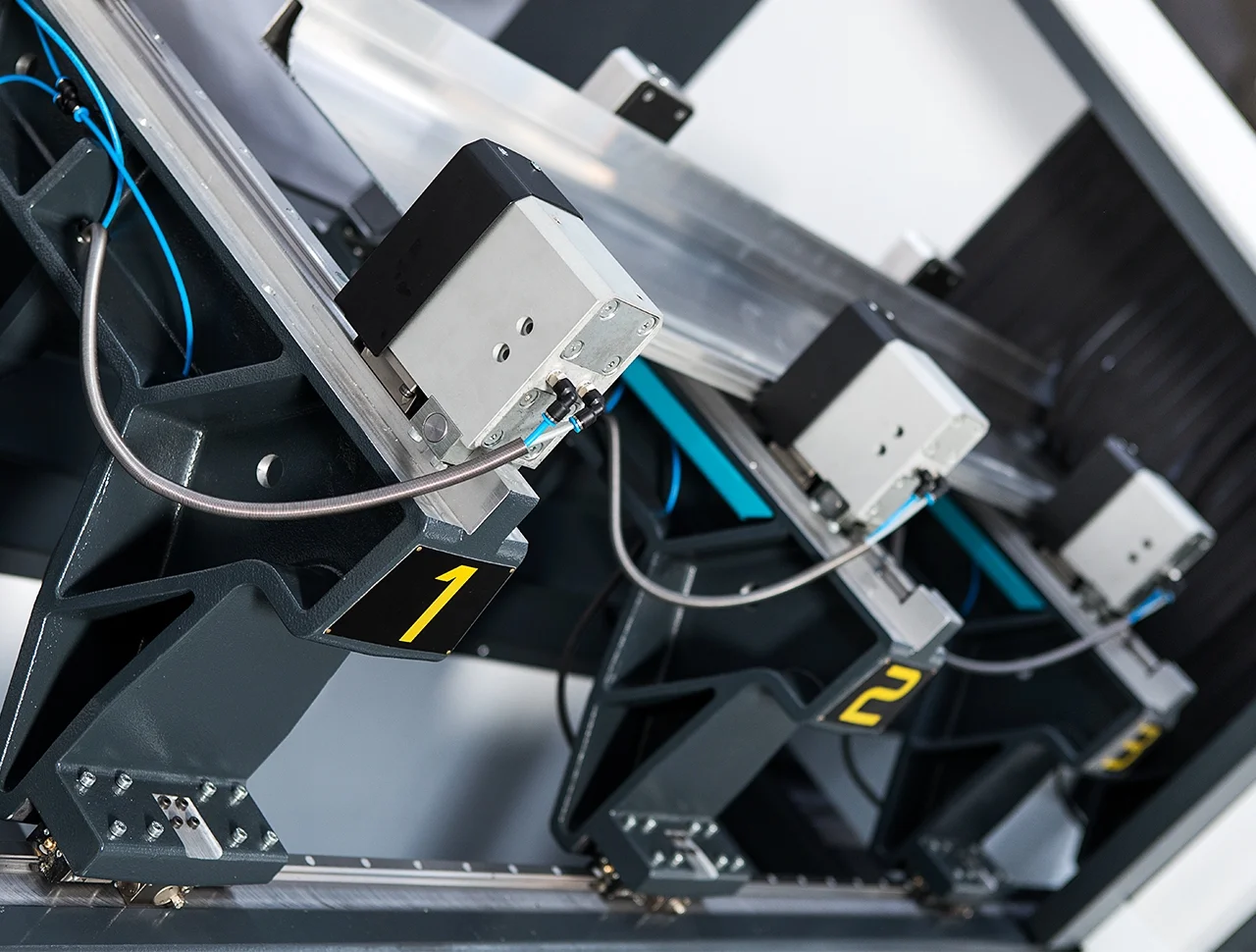

- 8 x automatic clamps used for grabbing the work piece firmly
- 2 x pneumatic rests used for resetting the work piece in X direction

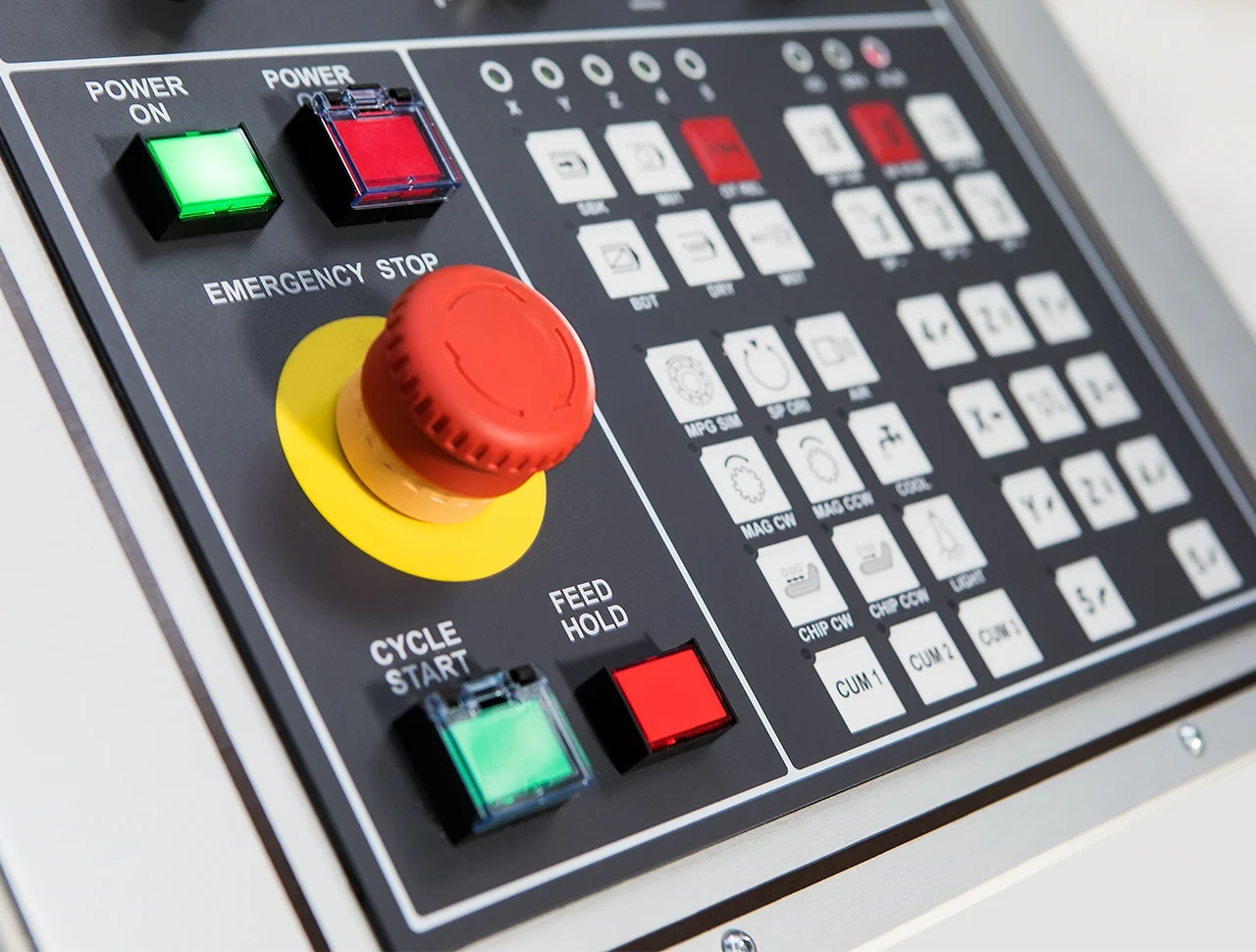

- Hand held controller allows you to prove the job before running at speed

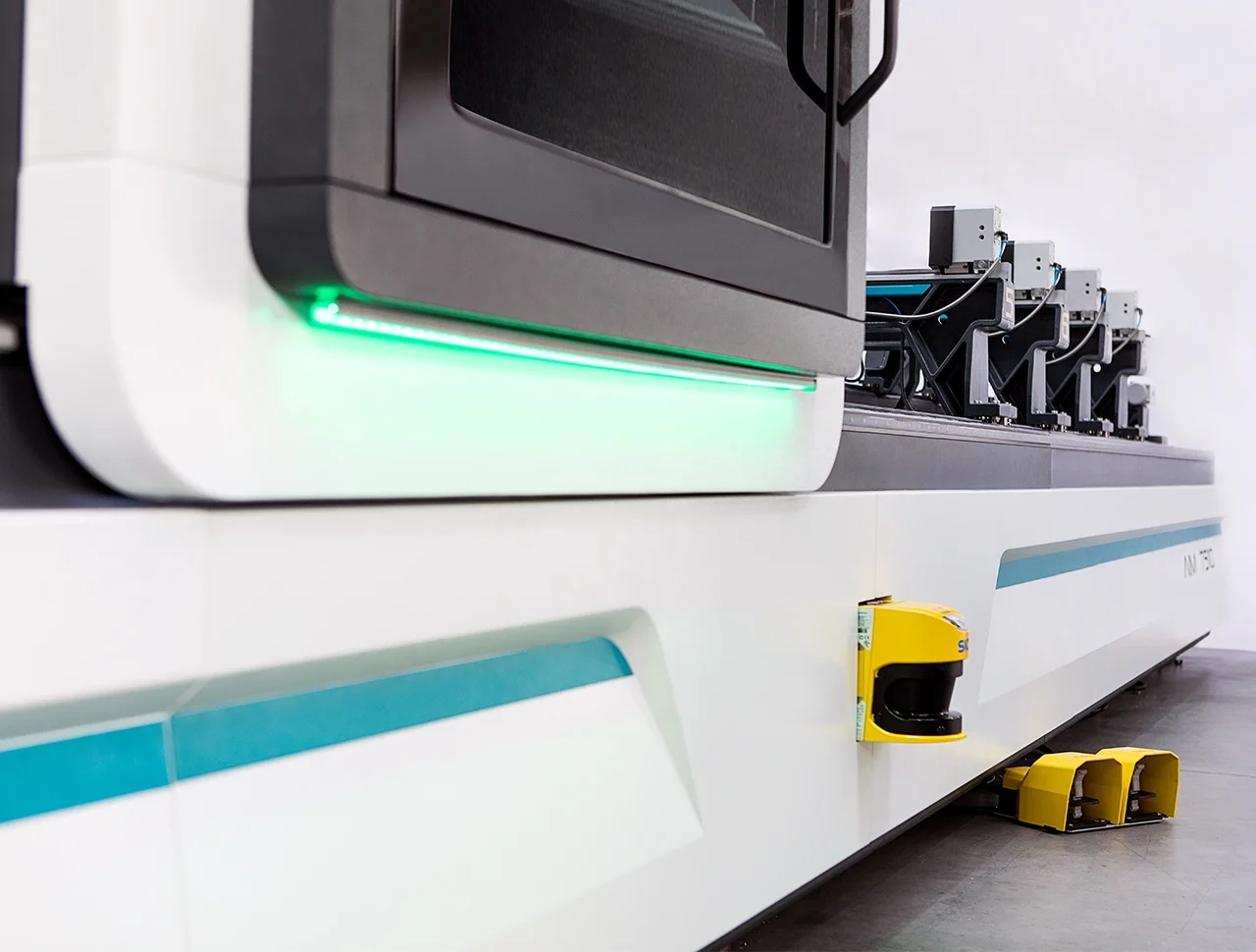

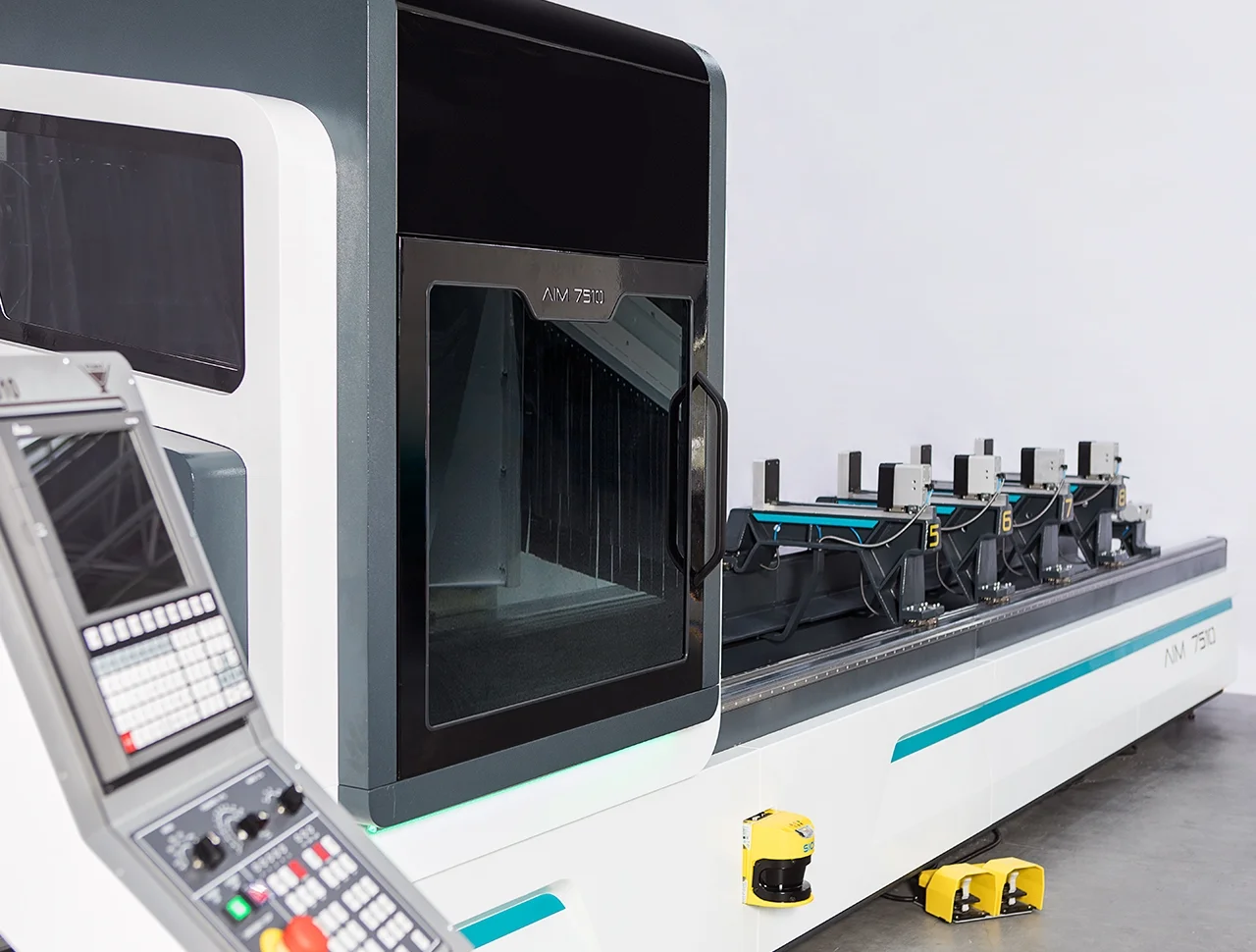

- Optimum operational safety guaranteed by 3-zone field scanner system

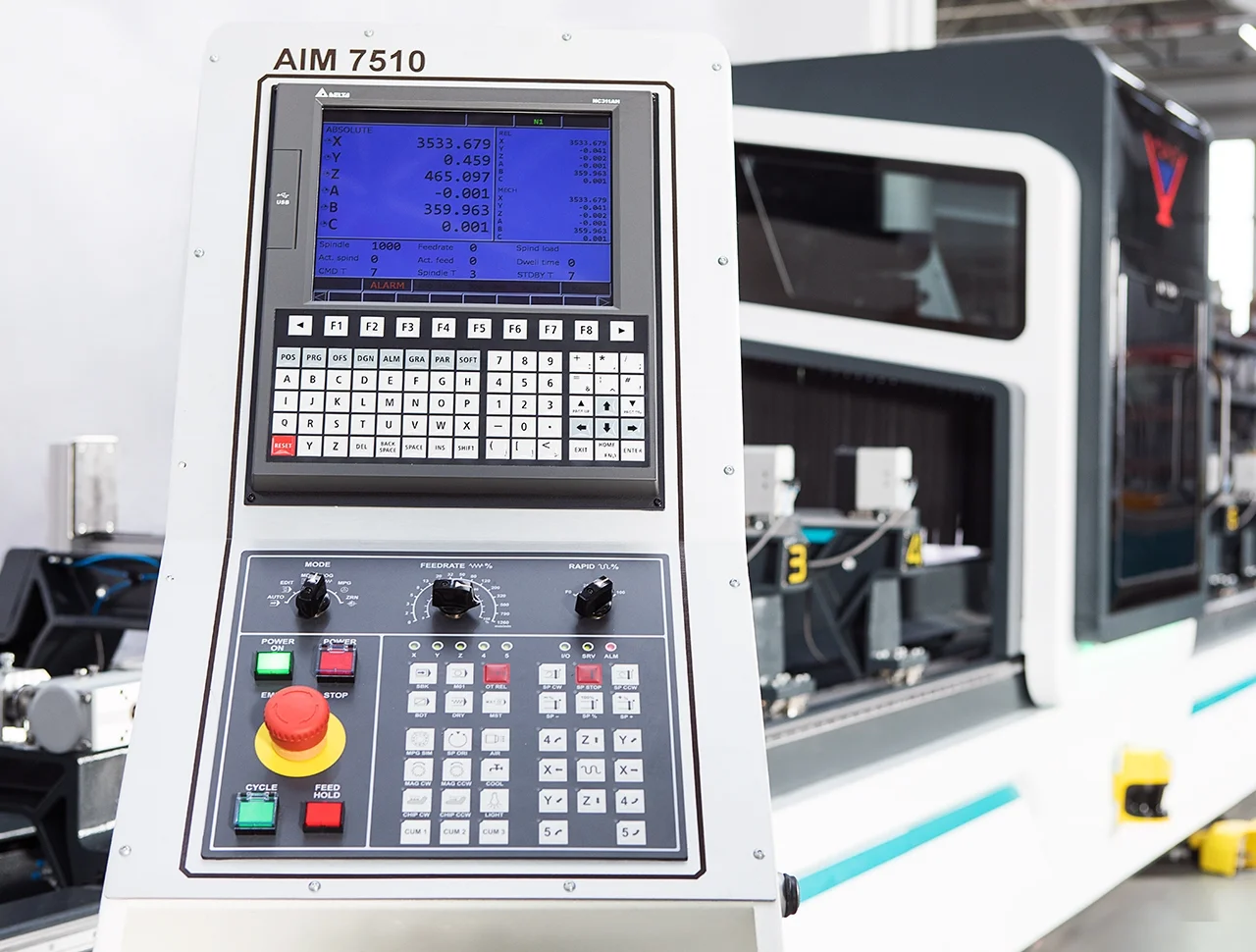

- 10’’ color touch screen
- Program import via USB flash memory stick
- Standard ISO ‘G’ code programming language
- Automatic central guide lubrication system
- LED lighting in the cabinet
- Multi-language support
Optional
- Work station PC for CAM applications
- Compensation chuck (up to M8)
- Tool length measurement kit
- Chip removal conveyor belt
- Tool car
- Additional clamps
- Saw blade, tools, tool holder and collets
- Covering sound insulation material inside the cabinet
