LIBRA

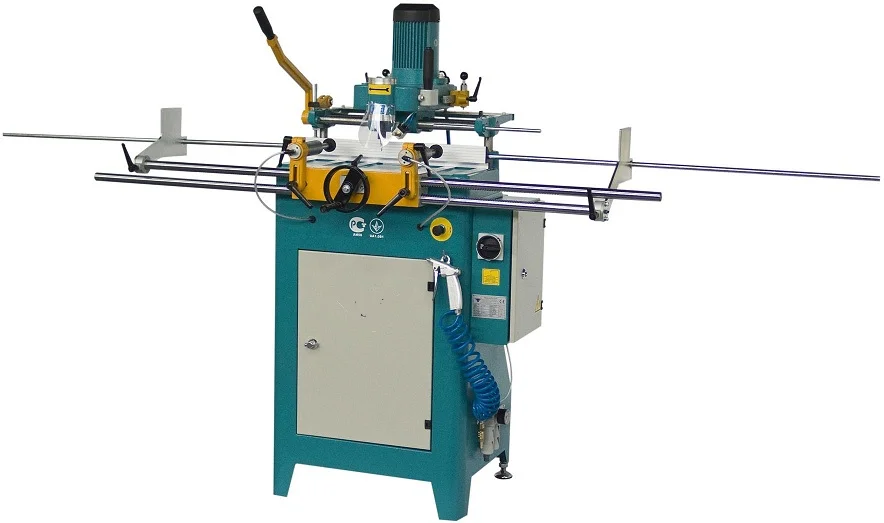

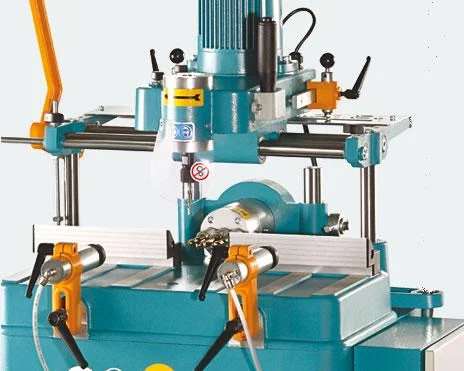

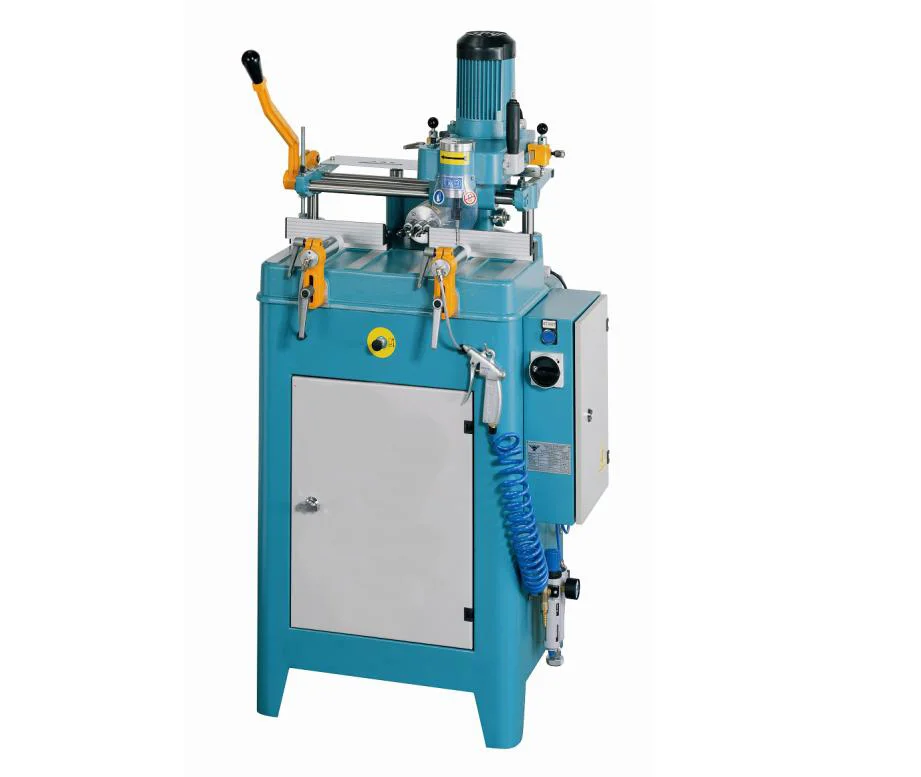

Libra-02 HM is a manual copy router machine with horizontal drilling unit. It has pneumatic twin horizontal clamps, router bit, profile support bars, copy template, diameter 8 mm collet and air gun among standard equipment, whereas extra router bit, special copy template, diameter 6 mm collet and pneumatic spray mist lubrication among optional equipment.
Libra-02 HM has been designed to open key holes, slots, holes and other window & door accessory shapes onto PVC and aluminum profiles.
- Profile support bars
- Router bit
- Pneumatic twin horizontal clamps
- Air Gun
- Copy template
- Collet diameter 8 mm
- Pneumatic Spray Mist Lubrication System
- User’s manual
- Collet diameter 6 mm
- Extra router bit
- Special copy template
| 800W 230V 50Hz 3000 rpm | 3-Ph 220V/440V | 0.2 CFM | X:10.2 Y:4.3 Z:5.1 | 14,000 RPM | 9,000 RPM | 32 L-32 H-59 | 323 lb | 233 lb |
| 1200W+750W 50/60Hz | 400V AC 3P PE | 6 L/min | 6/8 Bar | x:260 y:110 z:130 mm | 14,000 RPM | 9,000 RPM | W:80 L:80 H:149 cm | 147 kg | 106 kg |
Başlık
Libra-02 HM is a manual copy router machine with horizontal drilling unit. It has pneumatic twin horizontal clamps, router bit, profile support bars, copy template, diameter 8 mm collet and air gun among standard equipment, whereas extra router bit, special copy template, diameter 6 mm collet and pneumatic spray mist lubrication among optional equipment.
Libra-02 HM has been designed to open key holes, slots, holes and other window & door accessory shapes onto PVC and aluminum profiles.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Libra-02 HM at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
