CRATER

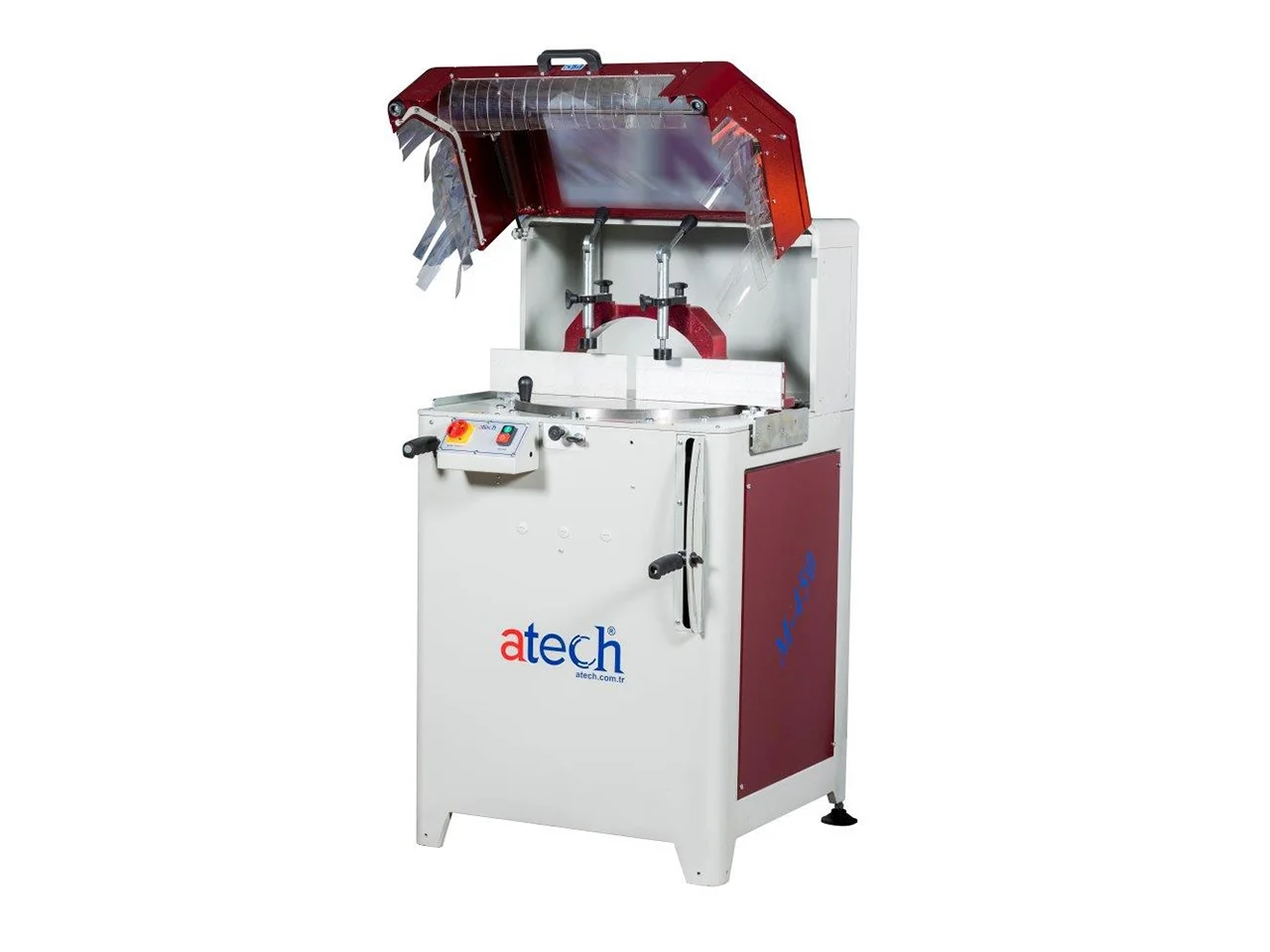

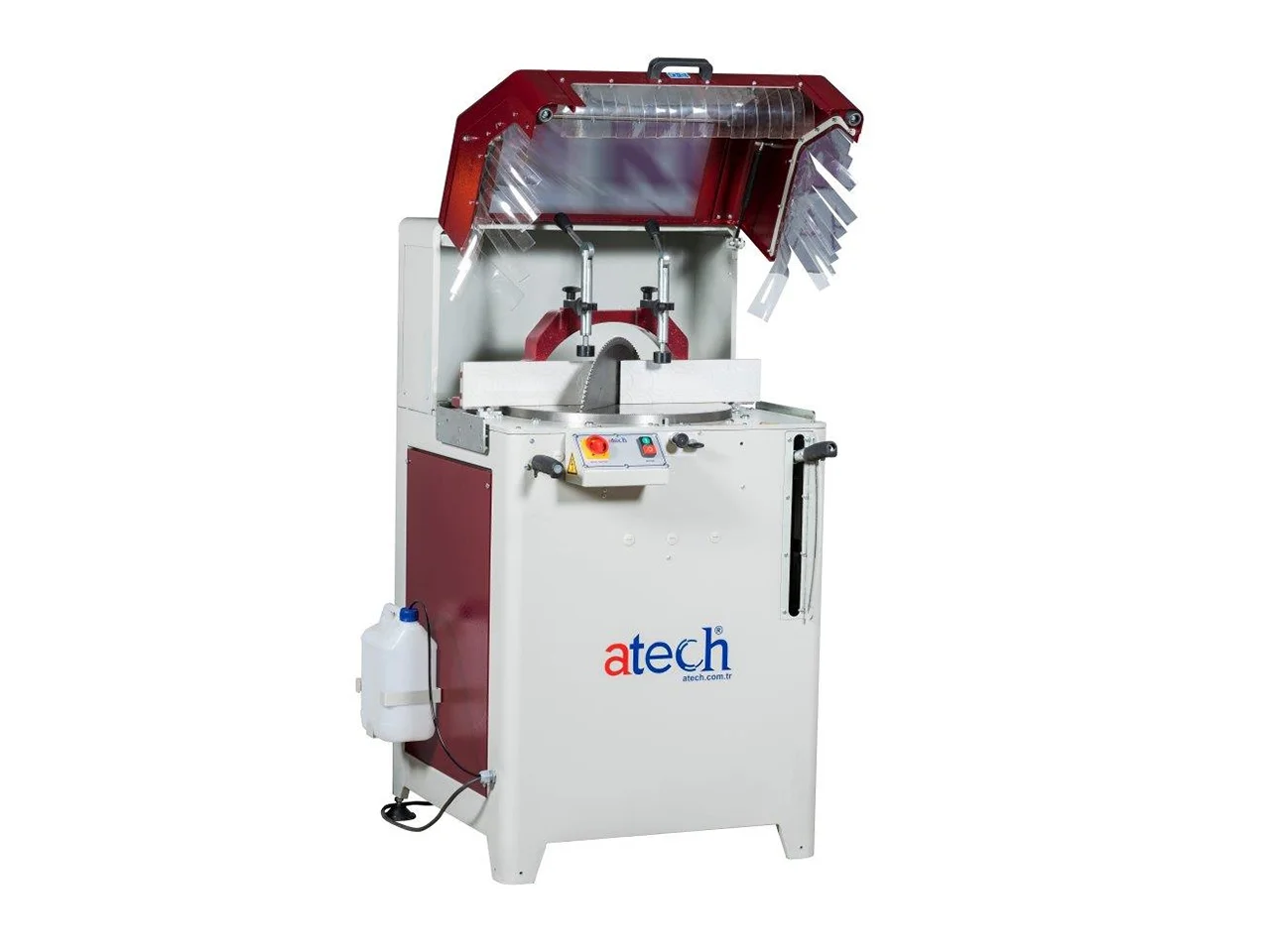

Crater-06 M is a manual 18” (450 mm) up cut miter saw. It has 2 main parts; a 18” (450 mm) circular saw blade and manual clamps. There are also infeed & outfeed tables, and pneumatic spray mist lubrication systems among optional equipment.
- Heavy duty manual upcut miter saw designed for cutting PVC, aluminum and wood in desired angles
- Comfortably cutting by pressing down the horizontal metal bar
- Split type straight cut on 90° left angle
- Cutting at fixed angles (lock pin) and any intermediate angles
- 18” (450 mm) circular saw blade
- Manual clamps
- User’s manual
- Pneumatic spray mist lubrication
- Infeed & outfeed tables
- Twin pneumatic clamps (horizontal and/or vertical)
| 2.2 kW (3 HP) 3000 RPM 1-Phase 220V / 3- Phase 220V 50/60 Hz | W: 90 cm (35”) L: 85 cm (33”) H: 128 cm (50”) | 150 kg - 330 lbs | 130 kg - 286 lbs |
Upcut Miter Saw
Crater-06 M is a manual 18” (450 mm) up cut miter saw. It has 2 main parts; a 18” (450 mm) circular saw blade and manual clamps. There are also infeed & outfeed tables, and pneumatic spray mist lubrication systems among optional equipment.

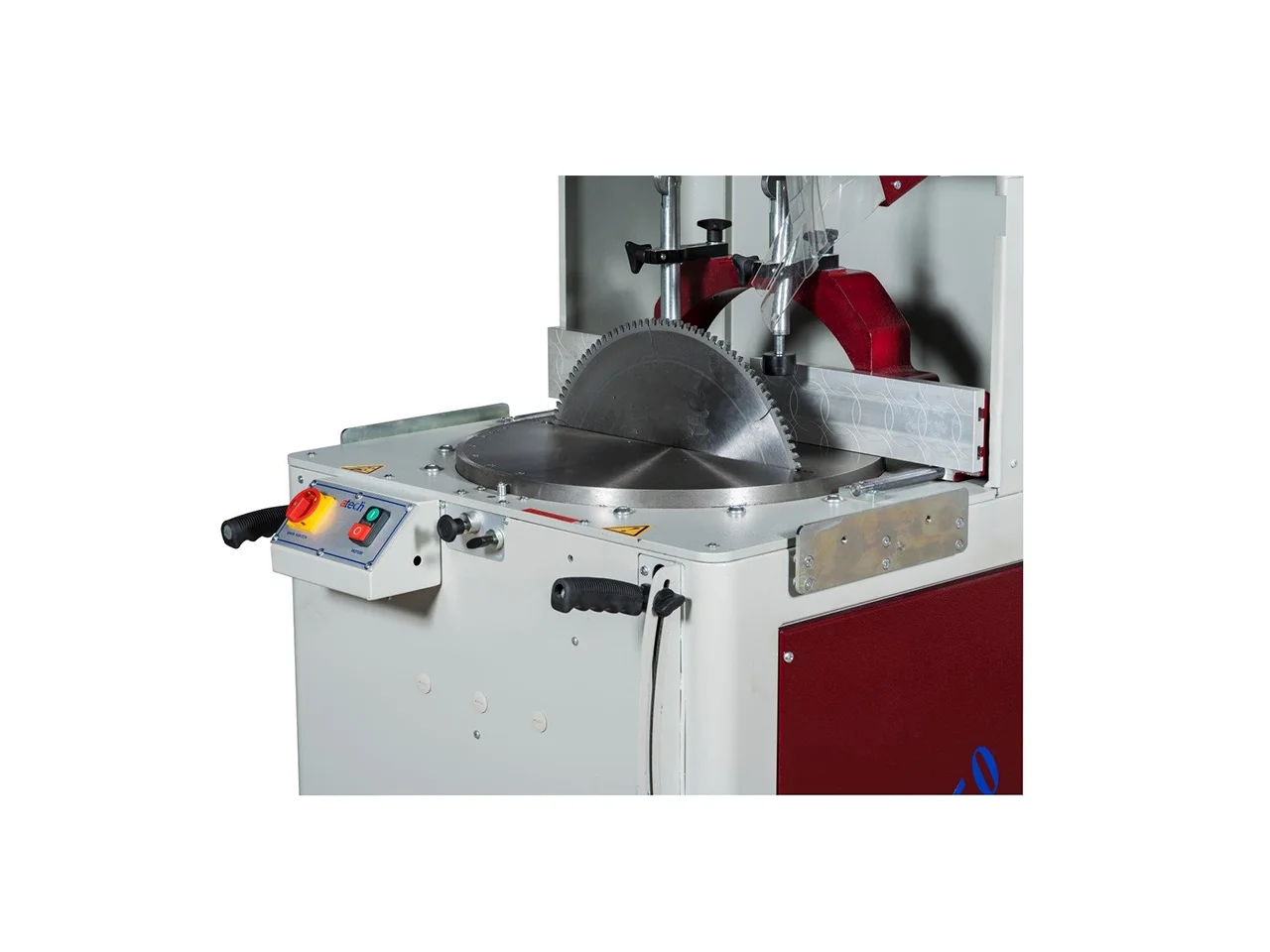

Crater-06 M’s heavy duty 18” (450 mm) manual up cut miter saw is designed for cutting PVC, aluminum, and wood at desired angles, and it has split type straight cut on 90° left angle.It has cutting at fixed angles (via the lock pin) and any intermediate angles.In addition, the cutting process itself is user friendly by easily pressing down the horizontal metal bar.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Crater-06 M at ATechMachinery.com, or read its detailed technical catalog and parts list.
