CPM 6161 Double Station Composite Panel Processing Machine
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
General Features
Property of manual vacuum control and partial vacuum contro... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
General Features
- Property of manual vacuum control and partial vacuum control of the table

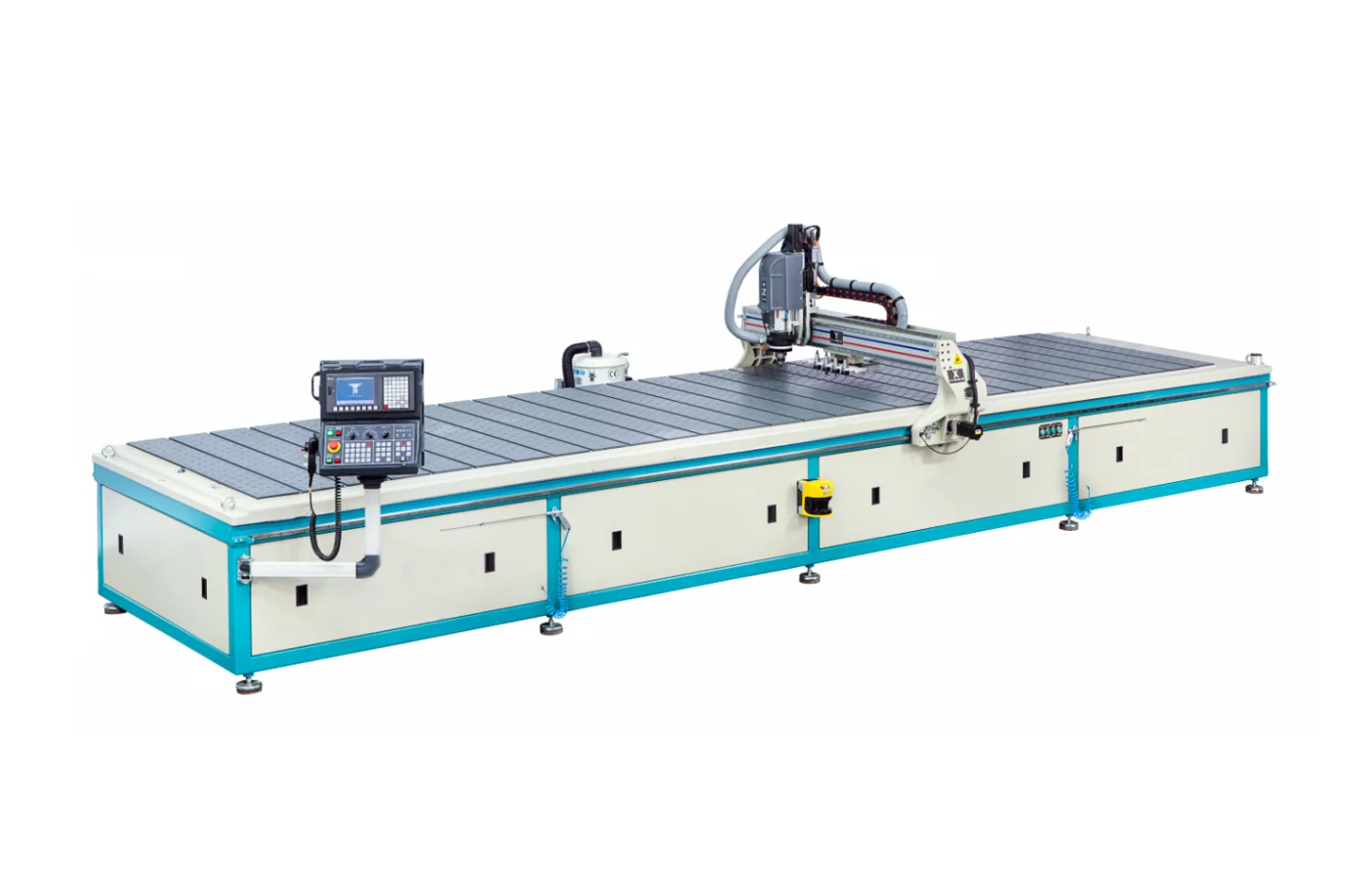

- Double station operation property (2 pc. x 3200mm panel)
- Ability to machine composite panel in maximum 1600 x 6650 mm sizes with one station operation
- Steel construction body and bridge that have dynamic and rigid design= Maximum accuracy

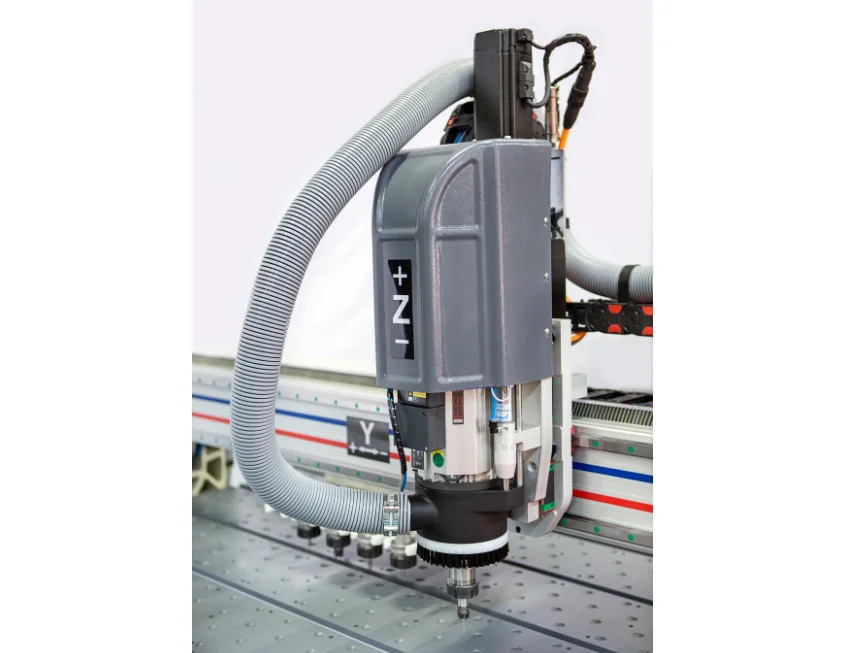

- Feature of programming based on the principle of providing maximum manufacture with high performance HSD spindle

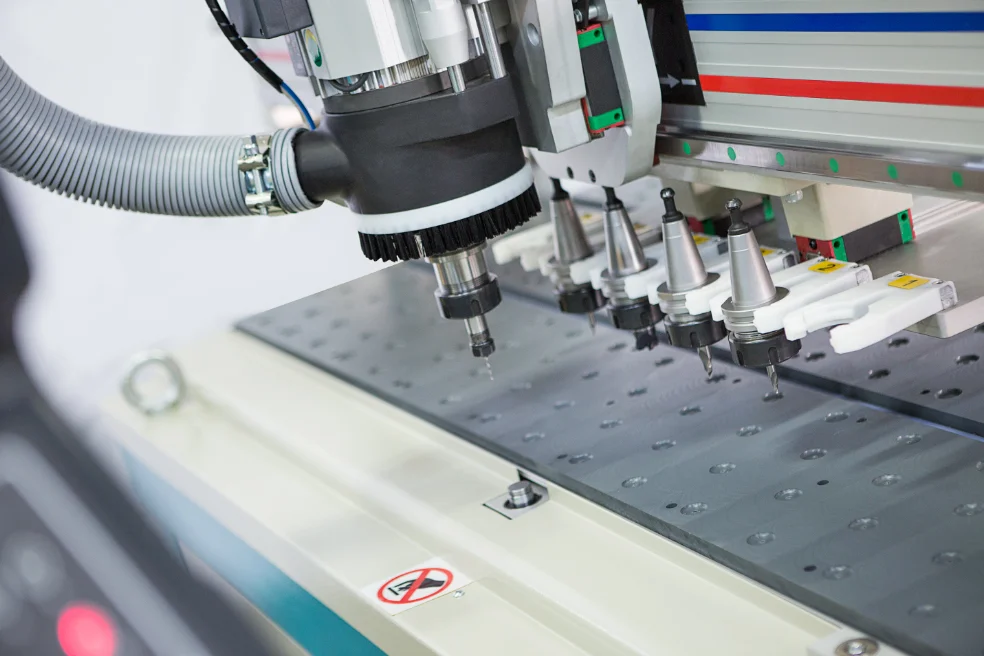

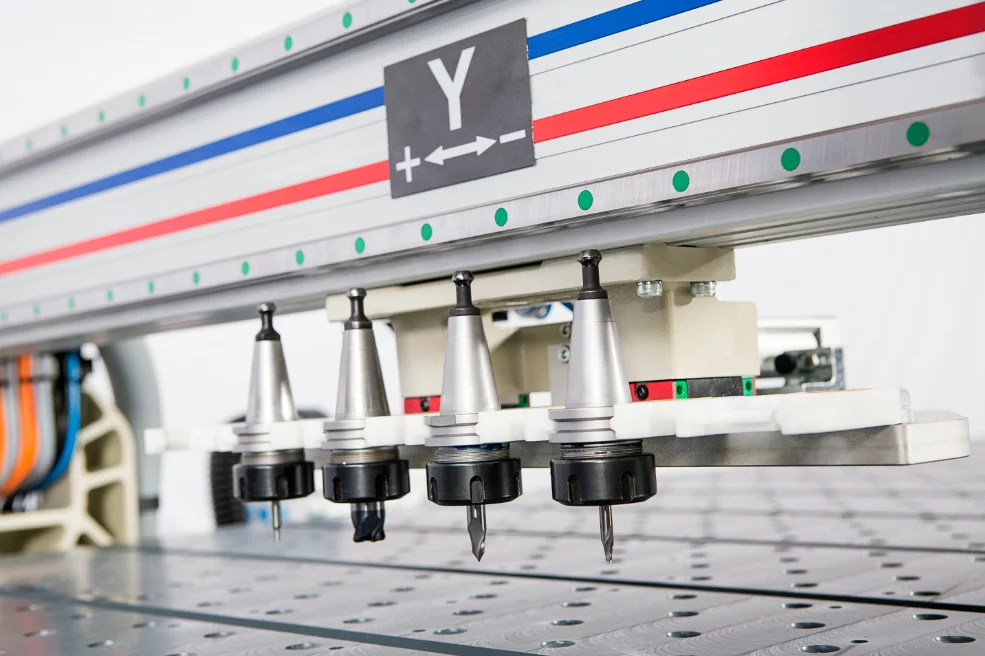

- A magazine unit with 6 tool capacity positioned on the bridge in order to minimize the tool changing time= Minimum tool change time
- Easy monitoring of the breakdown waiting and operating positions with LED effects on the machine table
- Ability to prepare the panel machining programs in a short period with the YILMAZCAM software program = Easy to operate (Alphacam optional)
- VORTEX chip removal system that cleans all the chips on the work plate
- Ability to retain easy even the parts in small sizes on the machining table thanks to the vacuum sucker with 2 x 7.5 kW suction capacity = no skimming
- 3 pcs. of pneumatic reference support pins.( third one is for the processing of the panels bigger than 6650 mm)
- Ability to move the panels on the table easy with the vacuum blower that can be operated reversely

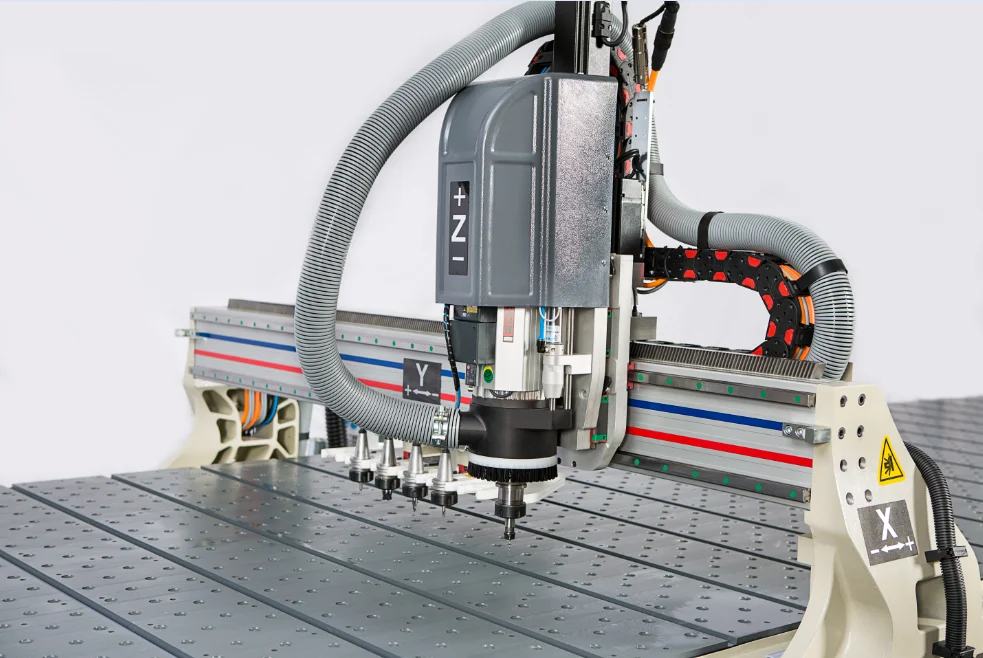

- CNC automatic system that ensure movement on 3 axes
- Pneumatically working reference pin system (pin system not interdependent for the double station operation)
- Automatic Tool Measurement System that ensure resetting of the tool length= minimum set-up time

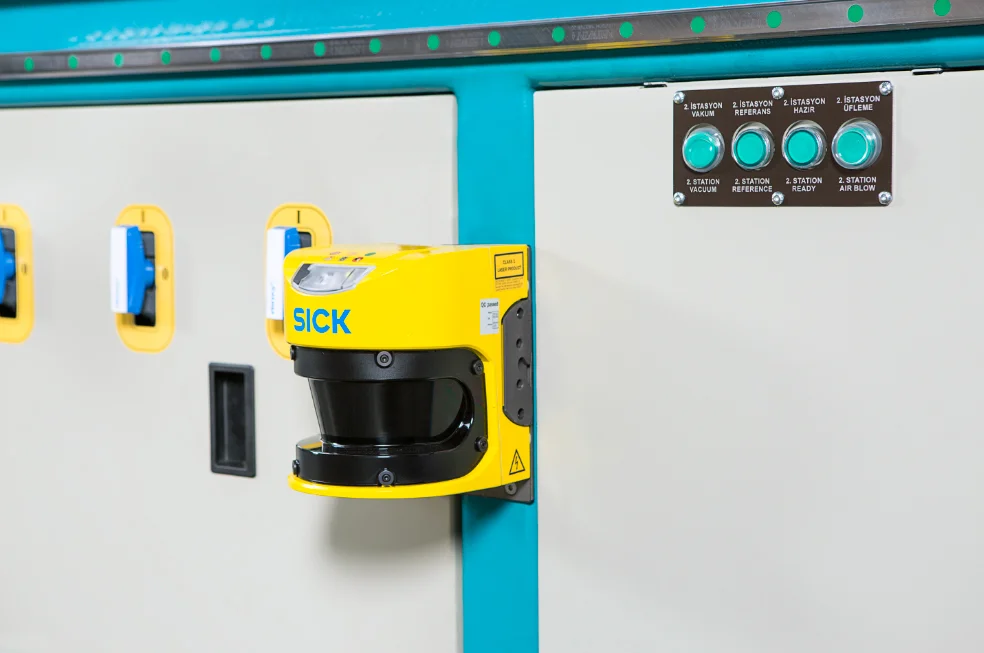

- Light barrier for maximum safety
- Multiple language support

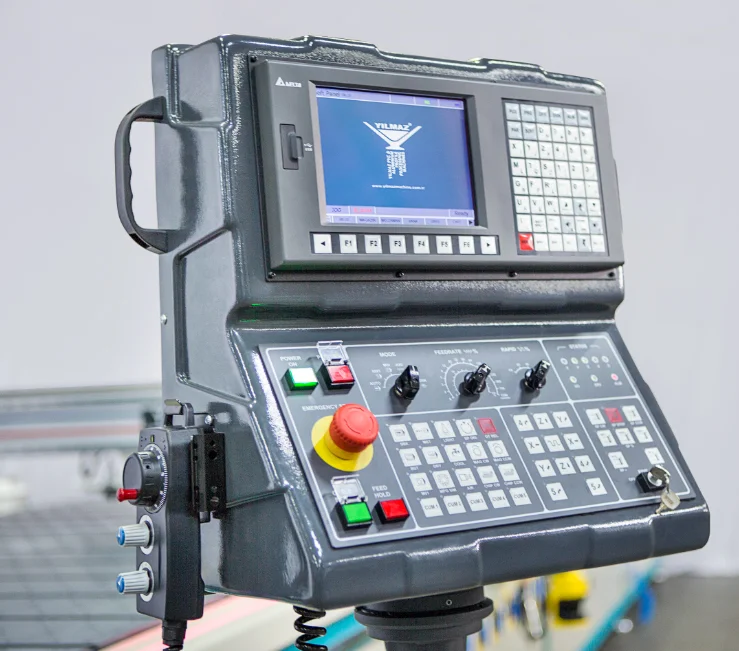

- PLC controlled control panel with color screen
- Hand-held pendant station unit for the adjustments and manual movement
- Possibility of easy program transfer with USB memory
- Ability to create program on the screen
- Technical support with remote connection
- Automatic lubrication system
Technical Features
| OPERATING AREA | |
| X-Axis | 6650 mm |
| Y- Axis | 1600 mm |
| Z- Axis | 150 mm |
| ELCETRO SPINDLE | |
| Maximum speed | 24,000 R.P.M. |
| Power | 7.5 kW HSD or G.Colombo / Italy |
| Tool holder | ISO 30 |
| Cooling type | Air cooling |
| AUTOMATIC TOOL MAGAZINE | |
| Max. Number of tools loadable in the magazine | 6 |
| Automatic tool magazine type | Bench type |
| Tool shank | ISO30 |
| Tool size measurement system | available |
| Max. Tool height | 60 mm |
| Max. Tool diameter | 50 mm |
| VACUUM TABLE | |
| Vacuum blower | 2 pc. x 7.5 kW – 800 mᴲ/h |
| Manual partial vacuum control | available |
| Air cushioning system that ensures the easy movement of the plate | available |
| MACHININ SPEED | |
| Axis speed (X/Y/Z) | X:40 m/min. Y:57 m/min. Z:15 m/min |
| 3 axis servo motor powers | X-Axis: 2 pc. X 0,75kw、Y-Axis:0.75kw、 Z-axis 0.75 kw |
| Positioning accuracy (X/Y/Z) | X : ±0.02 mm, Y: ±0.02 mm, Z : ±0.02 mm |
| Cutting speed | F:1~15,000 mm/ min. |
| GENERAL | |
| Net & package inclusive weight | 2470 – 2775 kg |
| Net measurement | 7300 X 2350 X 1800 |
| Package inclusive measurement | 7400 X 2450 X 2300 |
| Required air | 6 bar |
| Voltage-Frequency-Current | 400V 3P-50/60Hz, |
| Total power | 22 Kw |
| CHIPPING SUCTION SYSTEM | |
| External Chipping suction system | 2.2 Kw, 350 mᴲ/h |
