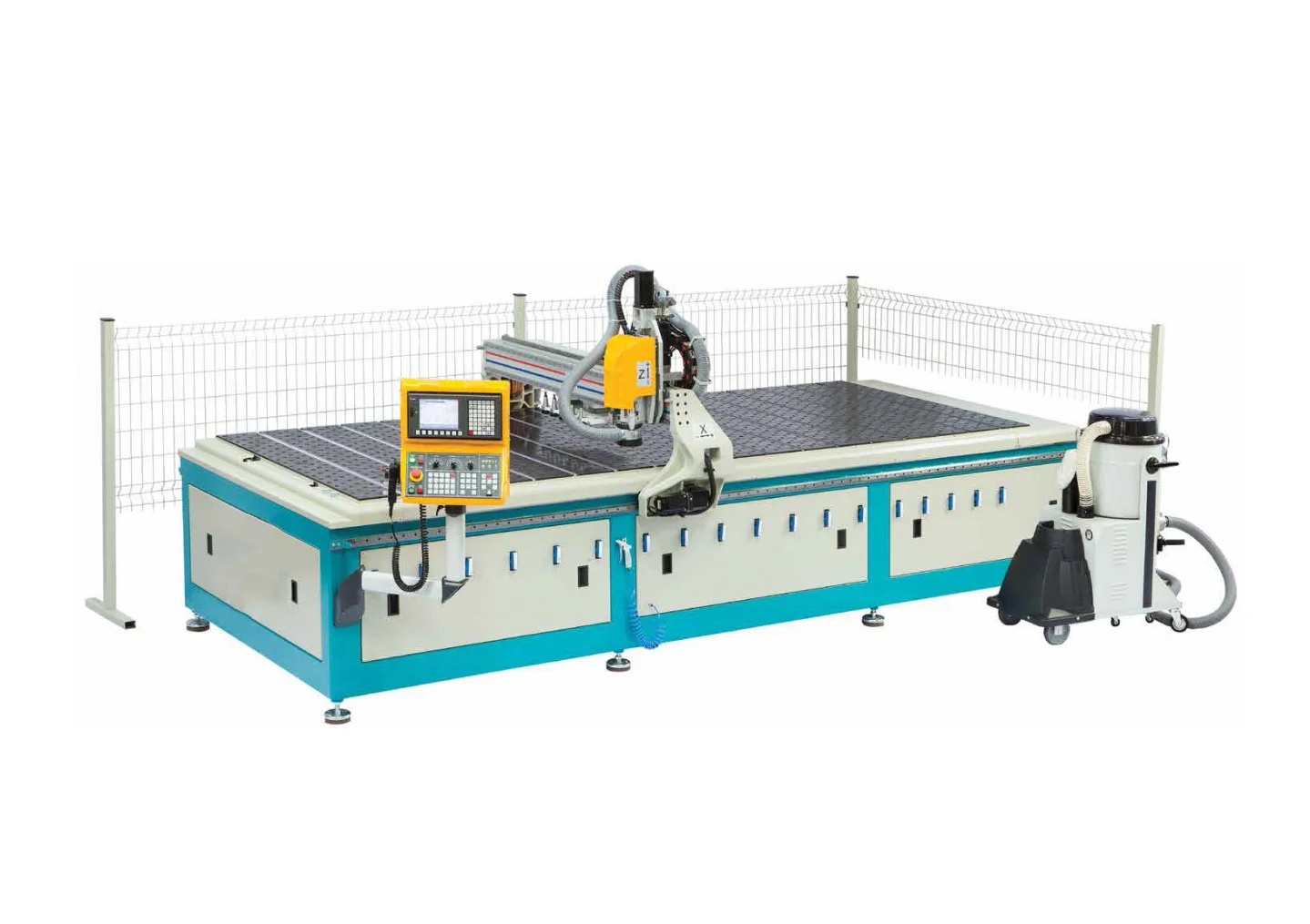

CPM 4150 COMPOSITE PANEL PROCESSING MACHINE
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
CPM 4150 COMPOSITE PANEL PROCESSING MACHINE
CPM 4150 COMPOSITE PANEL PROCESSING MACHINE
CPM 4150 COMPOSITE PANEL PROCESSING... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
Materials processed in machine: Aluminum composite panel, aluminum panel, plexy panel etc. CNC automation system with 3 axis of movement. Application of special cutting processes with ATECHCAMsoftware = Easy to operate. 2 pcs of Pneumatic reference support systems.( Second one is for the processing of the panels bigger than 4100 mm). Magazine unit with capacity of 6 sets of tool on the bridge= Minimum tool change time…
General Features
- Materials processed in machine: Aluminum composite panel, aluminum panel, plexy panel etc.
- CNC automation system with 3 axis of movement
- Application of special cutting processes with ATECHCAMsoftware = Easy to operate
- 2 pcs of Pneumatic reference support systems.( Second one is for the processing of the panels bigger than 4100 mm)

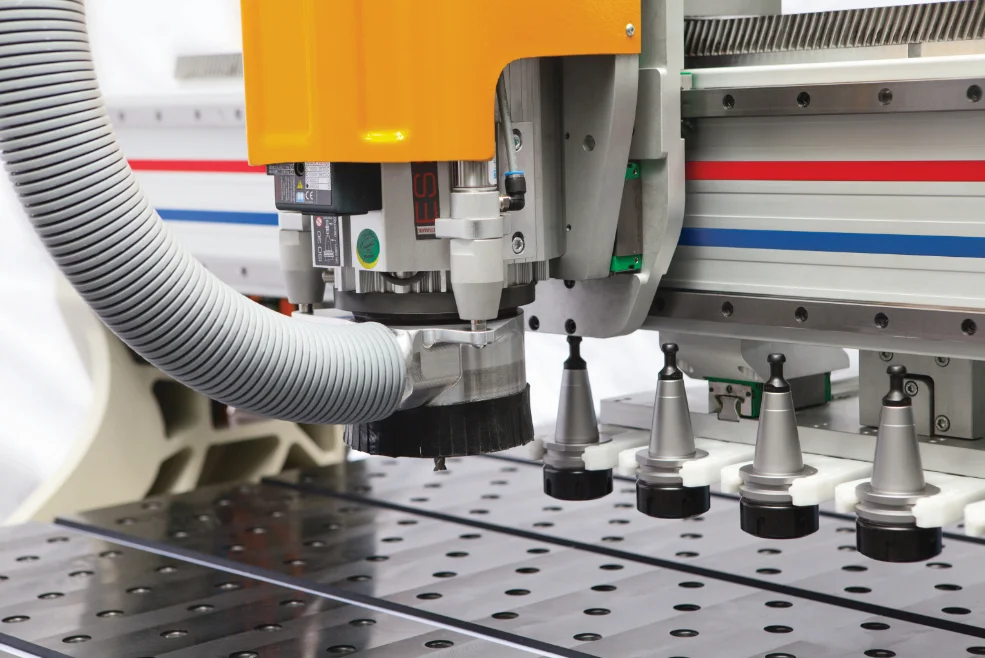

- Magazine unit with capacity of 6 sets of tool on the bridge= Minimum tool change time
- Vacuum manifold with a flow rate of 350 m3/ h to remove chips
- Superior ‘gantry’ design gives rigidity = Maximum accuracy
- Specially designed vacuum table for processing the small pieces = no skimming
- Air flow system to move the big size of the plate on the table easily = means more efficiency
- AUTOMATIC Tool Measurement System to reduce the tool setup time = Minimum set-up time
- Vortex chip removal system. Clean all the chips on the work plate= chip free environment
- Multi language support for control unit
- PLC controlled tool cooling system
- Superior hold-down vacuum system comes from 7.5 KW vacuum pump

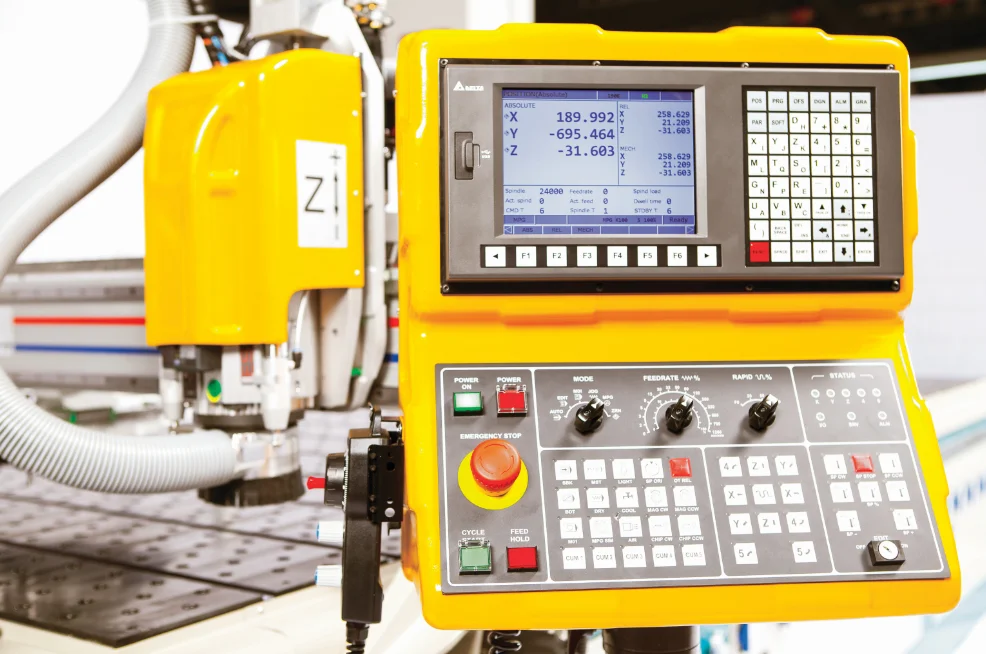

- Control panel with color display for CNC control
- Handle for setup and manual motion control
- Easy program transfer with USB memory stick
- Creating programs by using display
- Technical support with remote access
- Automatic linear bearing and pinion rack lubrication system = simple maintenance
- 1 set of tool mounting apparatus and wrench
- Optional tools, tool holders and clips
